Professional Thermal Camera

FLIR T560

Model: FLIR T560 + DFOV (14° + 24°) Go to Product Support
product image

T560 + FlexView DFOV Bundle Promotion! Details below on select camera savings plus bundle value.

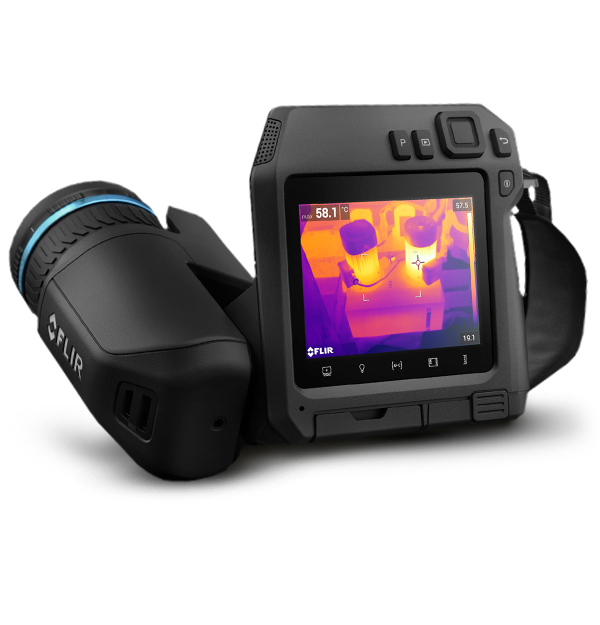

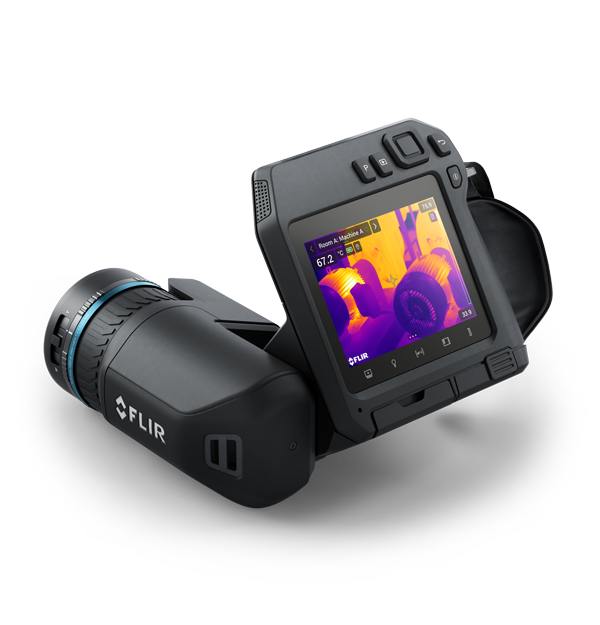

Troubleshoot hot spots, find hidden faults, and confirm repairs quickly with the ergonomic, high-resolution FLIR T560. This 640 × 480 (307,200 pixel) thermal imaging camera has a bright 4" LCD and a 180° rotating lens platform, so you can easily and comfortably diagnose electrical or mechanical issues, even in hard-to-reach areas. Advanced on-camera measurement tools such as 1-Touch Level/Span, plus laser-assisted autofocus, ensure you’ll record accurate temperature measurements every time. Pair the T560 with a FLIR FlexView™ dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning without changing the lens. With on-board FLIR Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro (with FLIR Route Creator plugin). Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.

$30,825.00
$27,905.00
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales

Resolution, Comfort, And Outstanding Performance

  • Make Critical Decisions Quickly

    Laser-assisted autofocus guarantees you’ll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions.

  • Flexible and Ergonomic

    The T560's optical block rotates 180°, so you can image targets at any angle—comfortably—all day long.

  • Improve Workflow Efficiencies

    Plan inspections in FLIR Thermal Studio Pro and load into a T560 with the FLIR Inspection Route camera option to streamline surveys and better manage critical data. Activate FLIR Ignite for automatic image uploads directly from the camera to the cloud for efficient and secure storage and sharing.

Don't Have Ignite?

FLIR T5xx-Series cameras purchased prior to December 2021 may not include the FLIR Ignite cloud connection. You can add it to your camera for free with a firmware upgrade available here.

Optimize Your Workflow at the Optimal Price!

For a limited time, FLIR is offering select T800-, T500-, and Exx-Series thermal camera, paired with a FlexView® Dual Field of View lens, at a promotional price with bundled value:

phh promo products.png thermal studio logo.png FLIR-Academy-logo-Black.png
Camera + DFOV lens  FLIR Thermal Studio Pro 12-month subscription Thermal Studio Suite Fundamentals online training

SEE THE SAVINGS




thermal-studio-pro-Exseries.pngProfessional Reports that Help Your Customer and Your Business

The right image analysis and reporting software can greatly improve your business by making it easier for you and your customers to understand the problem and feel confident that you fixed it.

The advanced analysis and decision-making support offered in FLIR Thermal Studio Pro includes a rich set of measurement tools, batch processing, the ability to pre-plan inspection routes, and customized report templates.




maintenance page_repair.jpg

flir care logo.png     flir protect logo.png

Never Worry About Your Camera Performance Again

Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.

Learn More

ITC_Logo_Primary.pngBecome a Thermal Studio Expert

Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:

  • How to adjust image parameters and optimize thermal contrast
  • How to create batch functions for image processing
  • How to design a new report template

Thermal Studio Training



Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Thermal Sensitivity/NETD
<40 mK, 24° @ 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading
Digital Camera
5 MP, with built-in LED photo/video lamp
Display
4", 640 × 480 pixel touchscreen LCD with auto-rotation
Storage Media
Removable SD card
Imaging & Optical
Camera software update
Using USB cable or SD card
Color
Black
Color Palettes
Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Detector Resolution
640 × 480
Detector Type and Pitch
Uncooled microbolometer, 12 µm
Digital Camera
5 MP, with built-in LED photo/video lamp
Digital Camera FOV
53° × 41°
Digital Zoom
1–8× continuous
Field of View
24°/14°
f-number
1.3/1.3
Focal Length
29 mm (1.41 in) / 17 mm (.67 in)
Focus
Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
Frame Rate [Full Window]
30 Hz
Image Frequency
30 Hz
Laser Alignment
Position is automatically displayed on the infrared image
Lens
DFOV (24°, 14°)
Lens Identification
Automatic
Minimum Focus Distance
.15 m (.5 ft) / 1.0 m (3.28 ft)
Minimum Focus Distance with MSX
.5 m (1.64 ft) / 1.0 m (3.28 ft)
Non-radiometric IR video streaming
H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture
Resizable and movable
Radiometric IR video recording
Real-time radiometric recording (.csq)
Radiometric IR video streaming
Over UVC
Spatial resolution (IFOV)
0. 4 mrad/pixel
Spectral Range
7.5 - 14 µm
Thermal Sensitivity/NETD
<40 mK, 24° @ 30°C (86°F)
UltraMax
Quadruples pixel count; activated in menu and processed in FLIR Tools
Video Lamp
Built-in LED light
Viewfinder
No
Visual Image
Yes
Visual Video Recording
H.264 to memory card
Visual Video Streaming
Yes
Measurement & Analysis
Accuracy
±2°C (±3.6°F) or ±2% of reading
Automatic hot & cold detection
Automatic maximum/minimum markers within area
Color Alarm (Isotherm)
Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation
Difference Temperature
Yes
Emissivity Correction
Yes, variable from 0.01 to 1.0 or selected from materials list
Measurement Corrections
Yes
Measurement Function Alarm
Audible/visual alarms (above/below) on any selected measurement function
Measurement Presets
No measurements, center spot, hot spot, cold spot. User Preset 1, User Preset 2
Object Temperature Range
-20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
Reference Temperature
Yes
User Interface
Display
4", 640 × 480 pixel touchscreen LCD with auto-rotation
Display Technology
IPS
Languages
21
Touch Screen
Optically bonded PCAP
Voice
60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
Power
Battery operating time
Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery type
Li-ion battery, charged in camera or on separate charger
Battery voltage
3.6 V
Battery weight
195 g (6.89 oz)
Charging system
In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging Temperature
0°C to 45°C (32°F to 113°F)
External Power Operation
AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
Power Management
Automatic shut-down and sleep mode
Environmental & Certifications
EMC
ETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 61000-6-2 (immunity), EN 61000-6-3 (emission), FCC 47 CFR Part 15 Class B (emission)
Humidity (Operating and Storage)
IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles
Operating Temperature Range
-15°C to 50°C (5°F to 122°F)
Radio Spectrum
ETSI EN 300 228, FCC Part 15.249, RSS-247 Issue 2
Safety
EN/UL/CSA/PSE 60950-1
Storage Temperature Range
-40°C to 70°C (-40°F to 158°F)
Tripod Mounting
UNC 1/4"-20
Warranty
http://www.flir.com/warranty/
General
Compatible with FLIR software
FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
Housing material
PCABS with TPE, magnesium
Laser Pointer
Class 2, 0.05–40 m (0.16–131 ft) ±1% of measured distance
Packaging
Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
Packaging Size
500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in)
Size (L x W x H)
Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in)
Weight [battery included]
1.4 kg (3.1 lb)
