The most pixels on target in a compact package

  • Configurable HD+ MWIR Camera Module.

    Flexible detector types, FPA window sizes, frame rates, and optical interface options.

  • Designed for Integrators.

    Simplify development and shorten time to market, with a mature infrared video processing architecture and robust SDK.

  • Teledyne FLIR Value and Reputation

    The performance, reliability and support expected from Teledyne FLIR and the industry’s most advanced HD+ MWIR camera module.

Meet the Neutrino Family

Meet the Neutrino Family

Teledyne FLIR has you covered for any MWIR imaging application. Offering SWaP+C optimized VGA, SXGA, and QXGA resolution camera modules, with long-life/low-vibration linear coolers, common camera interfaces, and various continuous zoom lens combinations, Teledyne FLIR’s Neutrino® portfolio provides the best solution available.

Specifications
Connections & Communications
Command and Control
 RS-422, selectable BAUD rate
Digital Output Format
Camera Link Medium compatible interface
Primary Electrical Connector
 40-pin Samtec
Synchronization Modes
Free run, external sync with readout or integration priority
User Configurability via SDK & GUI
Yes
Electrical
Input Power
5 VDC Camera, 28 VDC Cryocooler
Power Consumption
<20W Steady State
Environmental & Approvals
Coldshield
customizable
Non-Operating Temperature
-54 °C to +80 °C (-65°F to +176°F)
Operating Temperature
-40 °C to +71 °C (-40°F to +160°F)
Operational Altitude
40,000 ft
Shock
20G Shock Pulse W/11 Msec Half Sine
Vibration
4.3 GRMS three axis, 1 hr each
FPA Control
Programmable Integration Time
Yes (.01-16ms)
ROIC
Direct Injection, Snapshot, Progressive
Well Capacity
3 x 10 electrons
Imaging & Optical
Array format
2048×1536
Detector Type
InSb (T2SL Future)
Frame Rate
60Hz (1080P), >30Hz (QXGA)
Image Correction
2-point (offset and gain) and bad pixel replacement
Operability
>99.5%
Pixel Pitch
10µm
Sensitivity [NEdT]
<30mk, f/4, 50% well
Sensor Technology
MWIR
Spectral Band
3.4µm – 5µm (Standard)
Mechanical
Size (w/o lens)
12.0cm x 7.1cm x 11.6cm
Weight
1,970 gm
Performance
Time to Image
 <7 min @ 22° C ambient
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.

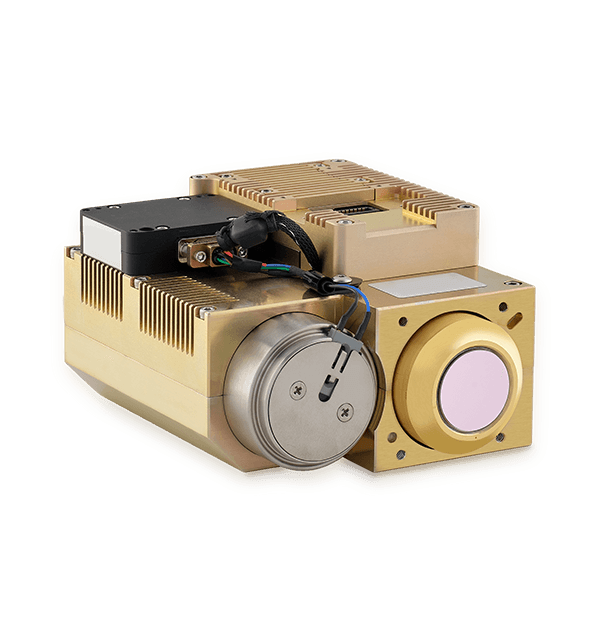

Neutrino® Performance Series - Model: Neutrino QX
