Quark 2
Discontinued
Support Center

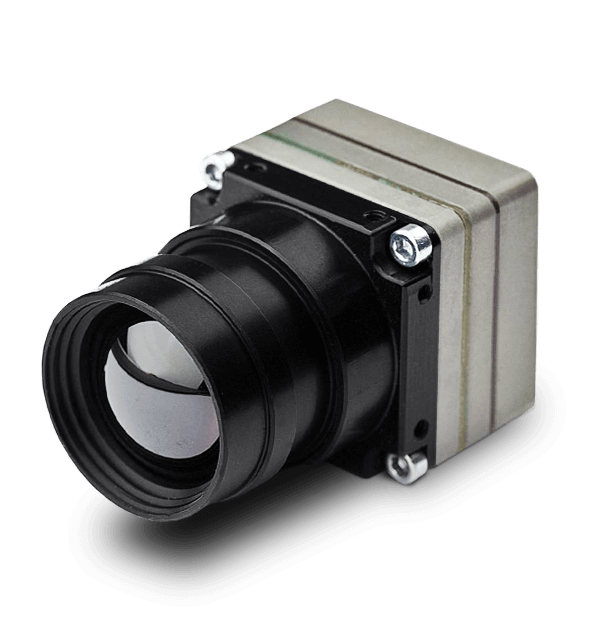

Quark 2

For Support
Please submit a ticket.

For Service
submit RMA.

Overview:
Export

Quark 2 Export Information

Read the Story
Software / Firmware

FLIR Camera Controller GUI for FLIR Vue, Tau, or Quark

Read the Story
Technical Guidance

Can any of FLIR's Camera Control software run on a Mac?

Read the Story
Technical Guidance

Do Tau2 or Quark2 cameras allow for thermography and temperature characterization?

Read the Story
Technical Guidance

What are the detection ranges for the various Tau2, Quark2 lens versions?

Read the Story
System Requirements

Are safety issues addressed in the User’s Manual or Guide?

Read the Story
Technical Guidance

Is there a protective window that can be used in front of my FLIR OEM camera that will not interfere with the thermal imaging?

Read the Story
Export

As far as 30 fps vs. 9 fps video rates are concerned, why use one over the other?

Read the Story
Technical Guidance

For Boson, Quark2, and Tau2 cameras used on vehicles for driver vision enhancement (DVE) or situational awareness, how would the operator inside view the scene?

Read the Story
Licenses

Is an export license required for Tau2, Quark2 thermal imaging cameras?

Read the Story
Technical Guidance

How many bits per pixel is the digital output?

Read the Story
Technical Guidance

Can the FLIR start-up splash screen be disabled in Tau2 and Quark2 cameras? Can a different splash screen be used?

Read the Story
Resources:
FLIR Camera Adjustments - LWIR
Download
FLIR GUI User Guide
Download
FLIR NVFFC Note
Download
FLIR Quark Quick Start Guide
Download
OEM Limited Warranty
Download
Tau - Quark 2 Supplemental FFC
Download
QuarK Electrical IDD
Download
Quark SSN Description
Download
Tau 2 - Quark 2 - Muon Response Curve
Download
FLIR Quark2 Datasheet
Download
Tau 2 Quark Software IDD
Download
Quark Product Specification
Download
FLIR Gain Calibration App Note
Download
FLIR Flat Field Correction App Note
Download
FLIR Splashscreen App Note
Download
FLIR Supplemental FFC App Note
Download
FLIR Tau 1 and Tau 2 Product Comparison Brochure
Download
Camera Controller GUI for Vue, Tau, and Quark
Download
Specifications
Overview
Exportable Frame Rates
7.5 Hz (NTSC); 8.3 Hz (PAL)
Factory Optimized Video
Yes
Pixel Pitch
17 µm
Scene Range [high gain]
-40°C to +160°C
Scene Range [low gain]
N/A
Size (w/o lens)
22mm x 22mmx 12mm
Spectral Band
7.5 - 13.5 µm
Thermal Imager
Uncooled VOx Microbolometer
Precision Mounting Holes [M1.6x0.35] on 4 sides [2 per side]
Yes
Connections & Communications
Discrete I/O Controls Available
Yes
Dynamic Range Switching
Yes
External Sync Input/Output
Yes
Flat-Field Correction (FFC) Duration
<0.5 sec
Primary Electrical Connector
60-pin SAMTEC
RS-232 Compatible Communication
57,600 & 921,600 baud
Settable Splash Screens
Yes (10-camera minimum)
User Configurability via SDK & GUI
Yes
Environmental & Approvals
Mechanical shock
250g (1.5msec half-sine) and 500g (0.8msec half-sine) along any axis
Non-Operating Temperature Range
-55 °C to +105 °C
Operating Temperature Range
-40 °C to +80 °C
Operational Altitude
Yes (up to 40,00 feet)
ROHS REACH and WEEE Compliant
Yes
Vibration
4.3grms random vibration along any axis
Humidity (non-condensing between 5% to 95%)
Yes
Temperature Shock (5 degrees - min)
Yes
Imaging & Optical
Active Contrast Enhancement
Yes
Analog Video Display Format
640 x 480 (NTSC); 640 x 512 (PAL)
BT656 (8-bit)
Yes
CMOS (14-bit or 8-bit)
Yes
Color and Monochrome Palettes (LUTs)
Yes
Digital Detail Enhancement
Yes
Digital Zoom
2x, 4x, 8x
Full Frame Rate
30 Hz (NTSC), 25 Hz (PAL)
Image Optimization
Yes
Information Based HEQ
Yes
LVDS (14-bit or 8-bit)
Yes
NTSC/PAL (field switchable)
Yes
Polarity Control [black hot & white hot]
Yes
Sensitivity [NEdT]
<50 mK at f/1.0
Silent Shutterless NUC
Yes
Slow Video Option [factory configured]
Yes
Smart Scene Optimization
Yes
Symbology
Yes (256 gray and 256 color)
Time to Image
<5 seconds
Invert/Revert (analog and 8-bit digital)
Yes
Power
Input Power
3.3 VDC +/-0.1VDC
Power Dissipation [steady state]
~1.0 W
Power Reduction Switch [disables analog video]
Yes
