Voltage, Continuity, and Current Tester

FLIR VT8-Series

Model: VT8-1000 Go to Product Support
product image

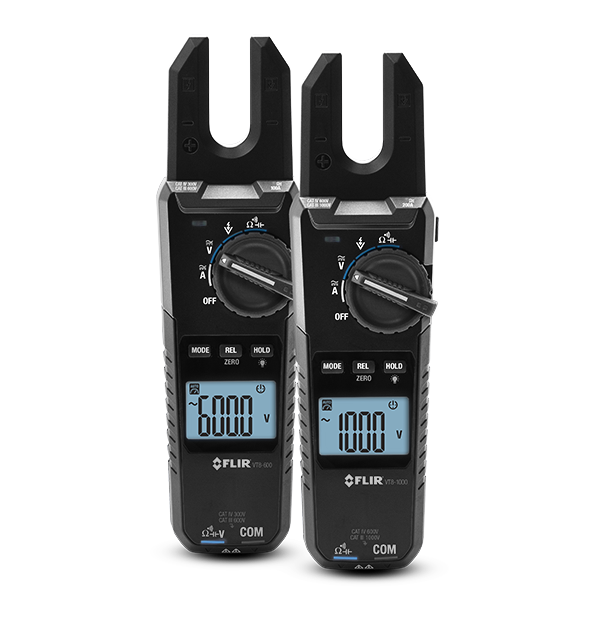

The FLIR VT8-Series are high-quality voltage, continuity, and current testers. They feature an optimized, open-jaw design that can fit into tight spaces and reliably measure large-diameter cables. The VT8-600 carries a CAT III-600 V/CAT IV-300 V safety rating and a 100 A/600 V measuring range, while the VT8-1000 carries a CAT III-1000 V/CAT IV-600 V safety rating and a 200 A/1000 V measuring range. Extensive measurement features make the VT8-Series versatile tools – just one meter can get the job done.

$225.00
$112.50
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
  • Rugged and safe

    Made with the quality and reliability you have come to expect from FLIR test and measurement tools

  • Rich features

    Equipped with the capabilities you need including True RMS, AC/DC voltage and current, continuity, resistance, and capacitance

  • Flexible, easy to use

    Take measurements in tight spaces with the optimized jaw design, and measure large-diameter cables with the wide jaw opening

Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Non_Contact Voltage Detector [NCV]
>100 Vrms; <10 mm distance (LED/buzzer alerts)
Drop test
2 m (6.6 ft)
Warranty
Limited 3-year
Measurement & Analysis
AC/DC Current Range
200 A
AC/DC Volts Accuracy
±1.5%, ±1.0% (56 to 66 Hz)
AC/DC Volts Range
1000 V
AC_DC Current Accuracy
±2.5% (50 to 60Hz)
AC_DC Current Resolution
0.1 A
AC_DC Voltage Resolution
0.1 V
Additional Measurement Functions
DCA zero, relative mode (AC/DC voltage, AC current, and capacitance), data hold
Auto Range
Yes
Capacitance
600 µF ±4.0%, 6000 µF ±10.0%
Continuity check threshold
10 Ω to 100 Ω
Display Rate
Approximately 3 times per second
Over_Range Indication
"OL" or "-OL" displayed
Polarity
Automatic display of positive and negative polarity
Resistance
60.00 MΩ ± (1.5%)
True RMS
Yes
User Interface
Display
6000-count backlit multi-function LCD
Environmental & Certifications
Agency Approvals
C-UL-US, CE, RCM
Drop test
2 m (6.6 ft)
Operating Temperature
-10 to 50°C (14 to 122°F)
Relative Humidity
95% max; 5 to 30°C (41 to 86°F) 75% max; 30 to 40°C (86 to 104°F) 45% max; 40 to 50°C (104 to 122°F)
Storage Temperature
–30 to 60°C (-22 to 140°F), batteries not installed
Warranty
Limited 3-year
General
Jaw Opening
15.5 mm (0.61 in)
Worklights
White LED
Power
Auto Power Off
After 15 minutes
Low Battery Indication
Battery symbol is displayed when batteries need changing
Non_Contact Voltage Detector [NCV]
>100 Vrms; <10 mm distance (LED/buzzer alerts)
Power Source
2 x AA alkaline batteries
