Vehicle presence detection board

FLIR VIP-3D

Model: FLIR VIP-3D.2
Go to Support Page

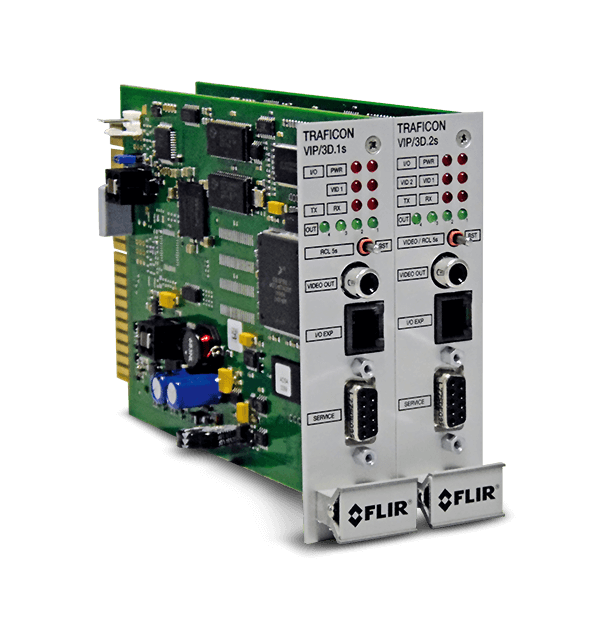

product image

FLIR VIP3D.x is a video detection board that provides vehicle presence information to the intersection controller. FLIR VIP3D.x integrates vehicle presence detection and traffic data collection in one module and provides a powerful solution for intersection control. As a single slot module, VIP3D.x plugs into all standard cabinet racks. The FLIR VIP3D.x module interfaces directly to the controller via cable connected outputs.

Smart intersection control

  • Vehicle presence detection

    VIP boards integrate vehicle presence detection and traffic data collection into one powerful solution for intersection control

  • Robust data collection

    Deploy 8 data collection zones in addition to stop bar and advanced vehicle presence detection.

  • Easy set-up in the field

    No computer required - just connect to a video monitor for user-friendly setup of zone positioning and detection.

Specifications
Overview
Dimensions
4.5 x 1.1 x 7.0 in (114 x 28 x 178 mm)
Power
10.8v to 26.5 VDC
Detection Zones
Up to 20
Connections & Communications
Output
4 outputs (open collector, selectable active low or high) Up to 24 outputs/20 inputs via expansion modules
Video Input
75Ω 1Vpp, PAL or NTSC
Video Output
via BNC connector - front
Double row 22 pins EDGE (NEMA TS2-1992) connector
Back
Push button
Front for reset/recall
RJ11 connector
Front to the expansion modules
Serial Port
Front for setup
Electrical & Mechanical
Consumption
200 mA @ 24 V
LED
For connection to I/O Expansion modules For the communication status / for the outputs status
Environmental & Approvals
Operating Temperature
-34° to +74°C (-29.2° to 165.2°F)
Relative Humidity
0 to 95% relative humidity - non-condensing
IR Illuminator
LED Type
Video in LED
