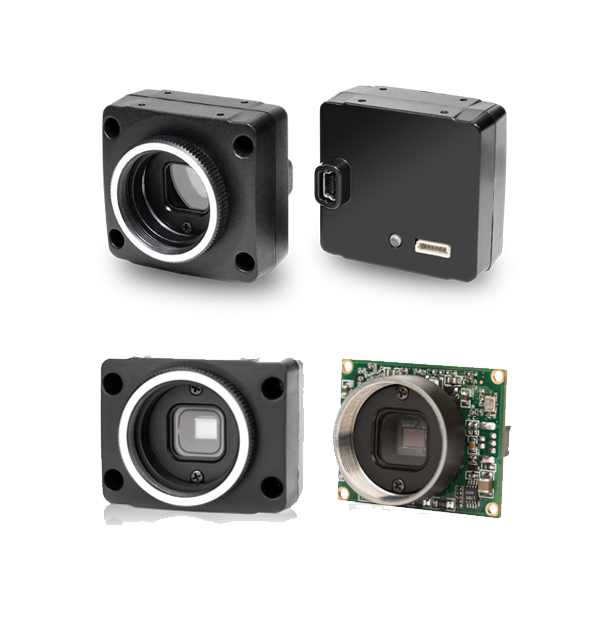

USB2 Cameras

Features

Exposure Range

0.01 ms to 10 seconds

Flash Memory

256 KB non-volatile memory

Frame Rate

18

Gain Range

0 dB to 24 dB

Image Processing

Color/Greyscale conversion, gamma, white balance

Partial Image Modes

Pixel binning, ROI

Trigger Modes

Standard, bulb, skip frames, overlapped

User Sets

2 memory channels for custom camera settings

Performance

Dynamic Range dB

57.85

Power Consumption

2 W

Quantum Efficiency Blue

46 (% at 470 nm)

Quantum Efficiency Green

50 (% at 525 nm)

Quantum Efficiency Red

48 (% at 640 nm)

Saturation Capacity (e-)

6365

Temporal Dark Noise (e-)

7.65

Physical

ADC

12-bit

Auxiliary Output

3.3 V, 150 mA maximum

Chroma

Color

Dimensions [W x H x L]

25.5 mm × 44 mm × 41 mm

Interface

USB 2.0

Lens Mount

CS-mount

Mass

37 grams

Megapixels

1.3

Non-isolated I/O Ports

2 bi-directional

Operating Humidity

20 to 80% (no condensation)

Operating Temperature

0° to 45°C

Part Number

CMLN-13S2C-CS

Pixel Size

3.75

Power Requirements

4.745 to 5.25 V via Mini-B USB 2.0 interface or JST 7-pin GPIO connector

Readout Method

Global shutter

Resolution

1296 × 964

Sensor Format

1/3"

Sensor Name

Sony ICX445

Sensor Type

CCD

Serial Port

1 (over non-isolated I/O)

Storage Humidity

20 to 95% (no condensation)

Storage Temperature

-30° to 60°C

Recommended System Configuration

Accessories included

5mm CS to C-Mount Adapter, Tripod Mount Adapter (ACC-01-0003)

CPU

3.1 GHz or equivalent CPU

Hard Drive

200 MB hard drive space

Operating System

Windows or Linux (32–bit or 64–bit)

Port

USB 2.0 Port

RAM

2 GB RAM or more

Required Accessories

Lens, Cable, Host Adapter (USB)

Compliance & Certifications

Compliance

CE, FCC, KCC, RoHS. The ECCN for this product is: EAR099.

Machine Vision Standard

IIDC v1.31

Warranty

1 year
