24:1 Spot IR Thermometer

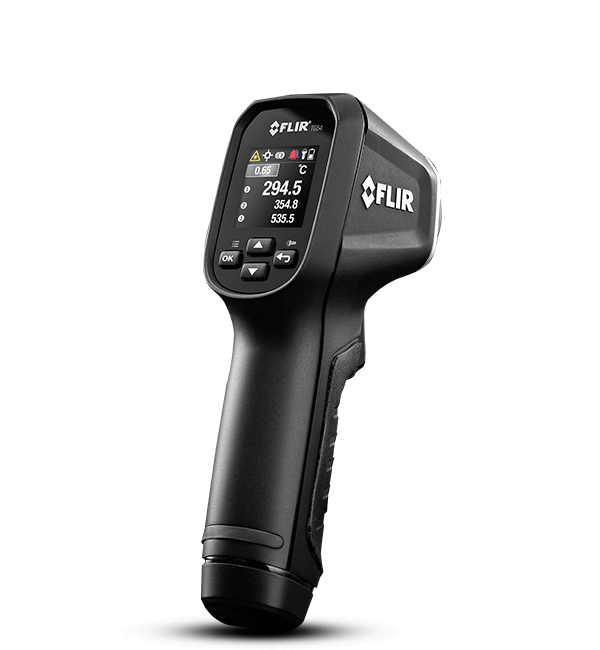

FLIR TG54

Go to Support Page
product image

The FLIR TG54 provides non-contact surface temperature readings so you can quickly and easily take measurements in places that are out of reach. Providing a distance-to-spot ratio of 24:1, the TG54 can measure smaller targets from a safer distance. The thermometer gives you control to view your current reading and last two temperature readings simultaneously, and the color screen makes it easy to navigate and select settings.

$175.00
Buy Now

Hard to reach just got easier

  • Measure Safely

    Provides non-contact temperature measurement and a 24:1 spot ratio to measure smaller targets from a safer distance.

  • Simple to Use

    The TG54's graphical menu structure and color display provide easy access to settings and clear navigation.

  • Portable and Rugged Design

    Built to withstand a 3-meter drop, the industrial and compact design makes it easy to carry wherever you need it.

Specifications
Overview
Alarm
High / Low
Alarm Alert
Color (Red / Blue) indication
Auto Power Off
Yes with Pre-set adjustment level and Disable option
AVG (6k pts running average)
Yes
Differential (MAX/MIN)
Yes
Laser Orientation
Single laser pointer to center of measurement spot, Class 1
Max/Min
Yes
TC/IR Differential Mode
-
Warranty
5 Year
Compliance & Certifications
Certifications
CE / FDA Laser
Connections & Communications
Input Type
-
Environmental
Drop test
Designed for 3m
Emissivity
Adjustable with 4 presets and custom option
IP Rating
Designed for IP56
Imaging & Optical
Continuous Run Time
8hrs Maximum
Range
-30°C to 650°C (-22°F to 1202°F)
Resolution
0.1°C / 0.1°F
Spectral Response
5 to 14 microns
Display (w x h)
1.45" TFT LCD (128 x 128 pixels)
Measurement & Analysis
Basic Accuracy
±1°C/1.8°F or 1% of Reading
Measurement Resolution
-
Response
≤150 Milliseconds
Power
Power Source
3 x AAA alkaline
Shipping Information
Includes
Wrist Strap Lanyard, Quick Start Guide, User Manual (CD), 3 x AAA Batteries, (TG56 adds General Purpose Type K Thermocouple)
Spot IR Specifications
Distance to Spot Ratio (D:S)
24:1
Included Type K Thermocouple Probe Range
-
Input Basic Accuracy
-
Input Range
-
Reviews

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.
