10 Inch Universal Flex Current Probe

FLIR TA72

Go to Product Support

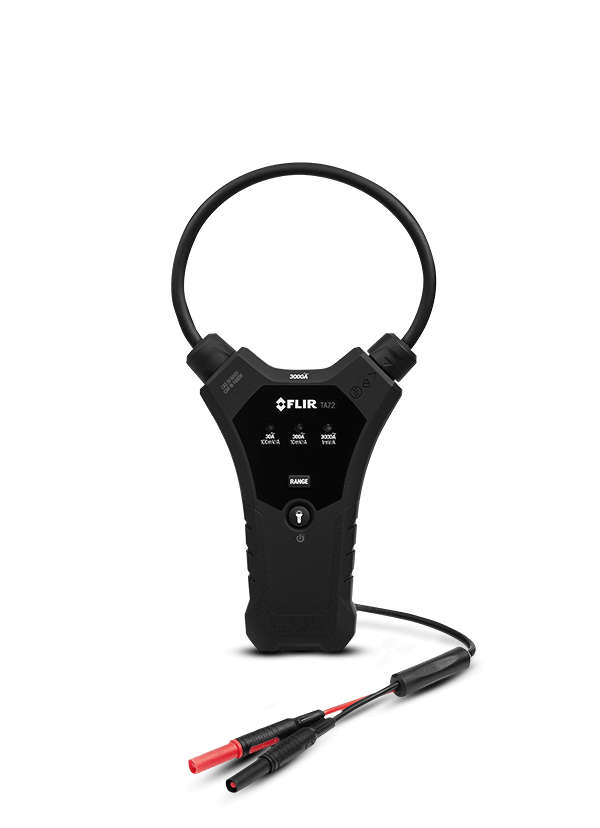

product image

The FLIR TA72 adds capabilities, simplifies challenges, and gives the best readings with your existing meter. Made with a narrow, 10-inch long flexible coil clamp and locking mechanism, the TA72 provides maneuverability and convenience to easily take measurements in tight or awkward spots. The connection is a standard banana plug and the output is a voltage signal, so it’s compatible with most DMMs and clamp meters, regardless of brand.

$210.00
Buy Now
FREE Shipping
Shipping & Returns
Contact Sales
  • Take Measurements in Tight Spots

    Snake the 10" flexible coil clamp around obstacles easily in deep, crowded cabinets, and measure multiple conductors with limited clearance.

  • Empower Your Meter

    Compatible with most DMMs and clamp meters, regardless of brand, the TA72 adds 3000A AC current measurements to existing meters.

  • Easy Inspection and Navigation

    Portable and lightweight, with dual-LED worklights to illuminate dark cabinets, the TA72 was designed with your convenience in mind.

Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Other
AC Current Bandwidth
45Hz – 500Hz (sine wave)
AC Current Ranges and Resolution
30.00A, 300.0A, 3000A
Agency Approvals
CE, UL
Basic AC current accuracy [full scale]
± 3.0% + 5 digits
Drop test
9.8' (3m)
Filter_Data Storage
N/A
Filter_Jaw Opening
N/A
Flex Coil Diameter
0.3" (7.5mm);
Flex Coil Length
10" (25 cm)
Flex Coil Tip Diameter
0.5" (13mm)
Max Conductor Diameter Capacity
2.4" (6cm)
Maximum AC current
3000A AC
Measurement Rate
1.5 samples per second, nominal
Min Reqs for Meter Comp with TA72
AC voltage function 4000 count display 1mV resolution
Positional Error [distance from optimum]
1.4" (35mm) 1.0% / 2.0" (50mm) 1.5% / 2.4" (60mm) 2.0%
Power Supply
(2) 1.5V "AAA"
Probe Length
73" (1.9m)
Safety Rating
CAT IV 600V,CAT III 1000V
Standards
EN61010‐1, EN61010‐2‐032
Warranty
Limited lifetime with registration
Work light
Two white LEDs
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
