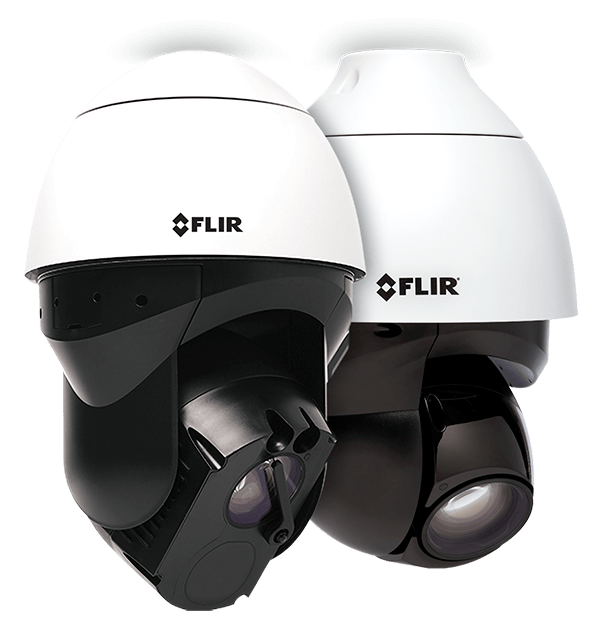

Quasar 4K IR PTZ Camera

Go to Product Support
product image

The FLIR Quasar™4K IR PTZ camera delivers crisp video quality with best-in-class low light capabilities and long-range IR illumination for exceptional performance. Designed for cybersecurity and controllable via FLIR Cloud, the Quasar 4K IR PTZ features an updated web interface for secure access. Unifying the latest PTZ technology, optics, mechanics and seamless integration with video management systems, the Quasar 4K IR PTZ is the ideal end-to-end solution for city surveillance deployments, critical infrastructure, airports and other high-security outdoor applications.

  • Superior Long-Range Surveillance

    Observe, detect and classify possible threats across wide areas with confidence.

  • Built-in High-Quality Cyber Security Protection

    Intelligent platform provides new simplified web interface, FLIR cloud connectivity for remote set-up and cyber security peace of mind.

  • FLIR United VMS Simplifies User Experience for True End-to-End Solution

    When used with FLIR United VMS, the camera gains extended PTZ control functions, adaptive streaming, reduced bandwidth, and guaranteed performance.

Specifications
Overview
Alarm Output
2 relay out
Dimensions
207.43 x 300.39 mm (8.16 x 11.83 in.)
Focal Length
6.4 to 138.5 mm
MTBF
348,786 (hrs)
Scanning Mode
Progressive
Security
User credentials with policy, IP attach block, TLS
Warranty
According to FLIR RMA Policy and Process Notice document
3D Noise Reduction
On / Off
AGC Control
Auto
Day/Night: IR Cut Filter
Auto / Manual
Alarm
Alarm In
4 dry contact in
Audio
Audio Bandwidth
Configurable between 16 kbps and 64 kbps
Audio Connections
Terminal block
Bi-directional Audio
Full duplex, line in/line out, G.711
Compliance & Certifications
International
CE marked, EN 50130-4, EN61000-6-4 (Class A), RoHS, LVD
MTBF [hrs]
348,786
ONVIF Compliance
ONVIF S
USA
FCC Part 15 (subpart B, class A)
Connections & Communications
Alarm IO
4 dry contact In - 2 relay Out
Configuration
Remote: via web access or supported VMS
Ethernet
10 / 100 Base-T auto sensing, half / full duplex (RJ45)
Network Protocol
IPv4, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, DHCP, UPnP, IGMP, ONVIF, ARP, IEEE 802.1X
Supported Web Browser
All versions (no ActiveX required)
Environmental
Humidity
10% ~ 90% (non-condensing)
Operating Temperature
-40° to 50° C (-40° to 122°F) cold start
Storage Temperature
-20° to 70° C (-4°to 158° F)
Imaging & Optical
Digital Zoom
22x / Up to 8x
Image Sensor
1/1.8" CMOS
Maximum resolution
3840x12160 (4KUHD)
Minimum Illumination
0.04 lux (color) / 0.02 lux (BW), 0 lux with IR On. Measured with DSS Off at 30 IRE
Optical Zoom
22x
Sensor Resolution
3840x12160 (4KUHD)
WDR
Shutter WDR, 130db
White Balance
Auto, ATW, Manual
Focus Mode
Auto / Manual
Iris Control
Auto
Optical/Digital Zoom
Up to 8x
IR Illuminator
Distance | Angle of illumination
Up to 200 m (656 ft.) | 6° / 30° / 90°
LED Type
High efficiency SMD
Power
Input Voltage
PoE, 60W, 12VDC, 24VAC (indoor/outdoor)
Power Connection
PoE / Terminal Block
Power Consumption
Max 39W with heater and IR on
PTZ
Auto Flip
Mechanical / Off
Presets
128
Horizontal Viewing Angles
64° (Wide) to 3° (Tele)
Manual Speed
Pan: 0.1° to 90°/s, Tilt: 0.1° to 60°/s
Pan/Tilt Travel
360° continuous /-10°to 190°
Pattern
8
Preset Accuracy
Pan: 0.16° Tilt: 0.18°
Preset Speed
5° to 280° / sec
Proportional Pan & Tilt
On / On (pan and tilt speed proportional to zoom ratio)
Tilt Travel
-20° to 200°
Video & Recording
Rate Control
CBR / VBR
Resolution Range
Scalable from VGA to 4K
Video Compression
Multi-Stream H.264 / MJPEG
Maximum Performance
H.264 30/25 fps @ 4K (NTSC/PAL) & H.264 30/25 fps @ VGA (NTSC/PAL)
