Pending Discontinuation

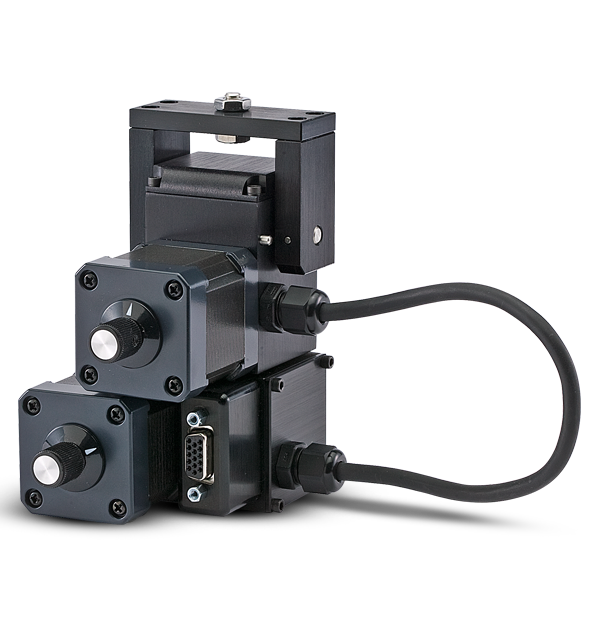

Miniature Computer-Controlled Pan/Tilt Unit


Model: FLIR PTU-E46-17 Go to Product Support
product image

The PTU-E46 family of miniature pan/tilt units provide fast, precise positioning in an extremely small and lightweight package. They are fully computer-controlled and offer programmability of speed, acceleration, power, and other parameters. The included controller, with built-in RS-232, Ethernet, and RS-485 interfaces, handles precise kinematic motion control according to user-set parameters. The PTU-E46 units accept ASCII and binary command formats and is networkable. Commands can be sent at high speeds for demanding applications, such as laser scanning and video tracking.

The PTU-E46 series will discontinue on March 1, 2024. The last day of support from Teledyne FLIR will be June 2025. For more information regarding the discontinuation process and to see what alternative solutions we recommend, please reference the EOL notice below.

Pan Resolution
Rated Payload
6 lb (2.72 kg)
Tilt Resolution
Input Voltage
12-30 VDC unregulated (fastest performance and torque @ 30 VDC)
Power Consumption [measured at 30 VDC]
13 W continuous peak (full power mode) 6 W continuous peak (low power mode) 1 W continuous peak (holding power off mode)
Payload Mounting
Hole for 1/4-20 screw standard. Camera mounting plate removes for easy customizing
PTU Mounting
Bottom or front 1/4-20 mounting
4 lbs / 1.4 kg
Connections & Communications
Control Protocols
DP (ASCII, Binary), Pelco-D
Host Interface
RS-232 (DB-9 female connector) RS-422/-485 (RJ-12connector), Ethernet
Interface Controls
Ethernet (web), serial (RS-232, RS-485)
Control of multiple pan/tilt units from one or more host computers. Multi-drop RS-485 network using RJ-12.
Wiring Configuration
No pass-through wiring options
Environmental & Approvals
CE Mark and FCC Part 15, Subpart B, Class A
100% relative humidity, non-condensing
Operating Temperature
-20°C to 60°C
IP65 Certified
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
