IGM™ Moisture Meter with Replaceable Hygrometer

FLIR MR176

Go to Support Page

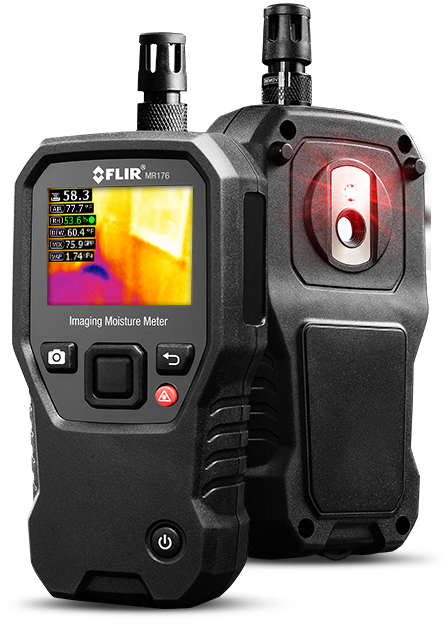

product image

Featuring Infrared Guided Measurement (IGM) technology powered by a built-in FLIR Lepton® 80 x 60 thermal imaging sensor, the MR176 visually guides you to the precise spot that moisture may be hiding. Use the integrated laser and crosshair to help pinpoint the surface location of the issue found with IGM. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. A field-replaceable temperature and relative humidity sensor delivers added convenience.

$1,330.00
$1,100.00
Buy Now

Get more flexibility from your moisture meter

  • Investigate Issues and Troubleshoot Quickly

    IGM helps you visually identify hidden moisture so you’ll know exactly where to place the meter probe for further investigation

  • Minimize Downtime

    The field-replaceable temperature and relative humidity sensor can simply be removed and replaced when needed to reduce unnecessary downtime.

  • Convenient, Flexible, Easy to Operate

    Get more done with the easy-to-navigate menu system. Share readings and images, and quickly create reports with free FLIR Tools software.

Specifications
Overview
Agency Approvals
CE, FCC Class B, RCM
Laser Orientation
Single laser pointer to center of thermal image
Packaging Size
33 cm x 14 cm x 12 cm (13 in. x 5.5 in. x 4.75 in.)
Sensitivity
<150mK
Typical Usage
4 work weeks
Warranty
2 Yr Product, 10 Yr Thermal Detector
Environmental
Air Temperature
Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
Dew Point
Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)
Mixing Ratio
Range 0 to 560GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2GPP (0.25 g/kg)
Relative Humidity
Range 0 to 100% / Basic Accuracy 2.5%RH
Vapor Pressure
Range 0.0 to 12.0kPa / Basic Accuracy ±0.05kPa
Imaging & Optical
Continuous Run Time
18 hours max
Display Type
QVGA (320 x 240 pixel) 2.3" color TFT graphical display
Gallery
17540
Image Update Speed Frequency
9Hz
Imaging Detector
FLIR Lepton microbolometer
Spectral Response
8 to 14µm
Thermal image minimum focus distance
4" (10cm)
Thermal image palettes
Iron, Rainbow, Ice, Greyscale
Field of View [W x H]
51° × 38°
Thermal Image Resolution [W x H]
4800 pixels (80 × 60)
Measurement & Analysis
Detection Limit
19.7in2 (49cm2) (Wet Area Detection @ 32ft (10m)
Image Calibration
Automatic with manual lock scale option
Measurement Resolution
0.1
Pin Moisture
Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
Pin Moisture Groups
9 Material Groups
Pinless Measurement Depth
0.75" (19mm) Max
Pinless Moisture Range
0 to 100
Response Time Pin Mode
750ms
Response Time Pinless
100ms
Other
Certification Standards
EN 61326 (EMC), EN 60825-1 Class 2 (Laser)
Power
Battery
3.7V, 3000mAh Li-ion rechargeable via micro USB
Shipping Information
Includes
MR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide,International USB Charger, USB Cable
Storage Media
Saved Image File format
BMP with measurement values overlaid
Stored Image Capacity
9999 images
Media Gallery
FLIR MR176 IR-fuktdetektor
Reviews

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.
