Premium Multi-Sensor Marine Thermal Camera

FLIR M400

Go to Support Page

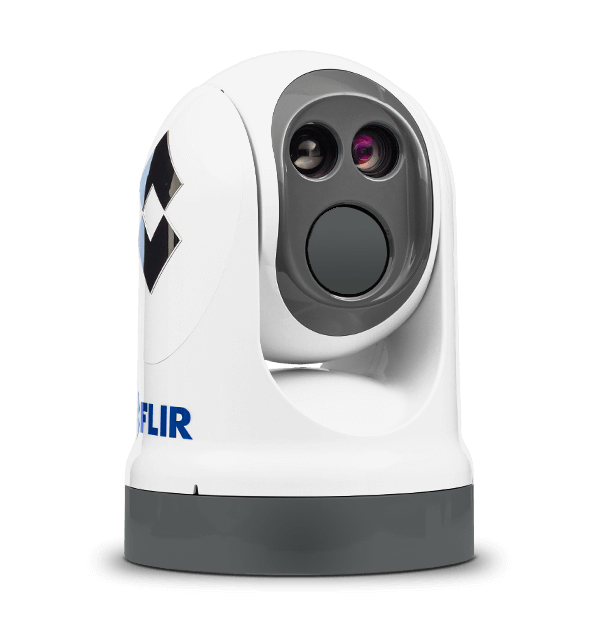

product image

The FLIR M400’s advanced 640 x 480 sensor delivers stunning thermal video in total darkness and lowlight conditions. An HD Color visible camera with 30X zoom and a tight-beam LED spotlight augment target identification for added safety. The M400 offers a continuous optical thermal zoom lens (up to 4×) for seeing vessels and objects at greater distances. Active gyro-stabilization and radar tracking keep important targets in view at all times.

The complete visual system for seeing targets at night.

  • Short and Long-Range Detection

    M400's thermal camera features a 4x optical zoom lens so targets remain in clear, crisp focus right up to maximum magnification.

  • Thermal and Visible-light Payloads

    Combination thermal sensor with up to 3X optical zoom and HD Color camera with 30X zoom.

  • Built for Harsh Conditions

    Rugged, waterproof gimbal enclosure with automatic window heaters keeps image clear, while gyro-stabilization ensures steady viewing in heavy seas.

Enhanced Target Identification

Enhanced Target Identification

The FLIR M400 provides exceptional situational awareness in challenging conditions. Two color palettes InstAlert™ mode depicts the hottest object in shades of red and orange for easy identification, while IceAlert™ turns the coolest objects in a scene to shades of blue and green. Radar integration tells the M400 to follow specific radar targets, while active gyro-stabilization ensures a steady image.

Specifications
General
Field of View
64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom
Typical Configuration
Camera Head, Joystick Control Unit, Cables, & Operator Manual, Glass-filled top down riser
Warranty
2 Year / 3 years with registration
Weight
45lbs.
Camera Head Size
15.18" x 18.68" / 15.5" x 22" Swept Volume Cylinder
Integration Options
IP Control by FLIR Joystick, PC,and Web Browser Integration with leading Multifunction Navigation Displays (Nexus SDK) FLIR Sensors Manager Integration RS-485/422 Serial Control by Pelco D NMEA 0183 Serial Communications (for radar tracking)
Pan & Tilt Coverage
360° Continuous Pan, +/-90° Tilt
Connections & Communications
Construction Type
BNC
Video Output
Dual, independent H.264 Network Video Streams HD-SDI Lossless Digital Video Interface High Definition Serial Data Interface Broadcast-quality video output Provides HD video over coax cable Switchable Composite Analog Video Output (SD) NTSC or PAL
Daylight Imaging
Zoom
30X Optical Zoom
Detector Type - Daylight
Long range color daylight and low light viewing
Field of View - Daylight
64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom
Focal Length - Daylight
129 mm to 4.3 mm
Minimum Illumination - Daylight
>0.5 lux at 50 IRE / .05 Lux in ICR Mode (B/W)
Resolution - Daylight
High Definition up to 1080/30p
Environmental
Automatic Window Defrost
Standard
Operating Temperature Range
-20 to 55 deg C
Storage Temperature Range
-50°C to 80°C
Marine Imaging & Optical
Video Tracking
No
Power
Power Consumption
<50 W nominal; 130 W peak, 270 W 2/heaters
Power Requirements
24V DC
Spotlight
Beam
5° Divergence Angle
Lumens
580.0
Type
LED
Thermal Imaging
Thermal Resolution
640 x 480
Detector Type - Thermal
640 × 480 VOx Microbolometer
E-Zoom - Thermal
1x to 4x
Field of View (H x V) - Thermal
18° to 6° / 1.5° HFOV with e-zoom
Field of View - Thermal
18° to 6° / 1.5° HFOV with e-zoom
Focal Length - Thermal
35mm (wide) to 105mm (narrow)
Image Processing - Thermal
FLIR Propriety Digital Detail Enhancement™
Accessories
Media Gallery
FLIR M400 Multi Sensor Marine Thermal Night Vision FLIR Systems, Inc
FLIR M400 Sample Video
Keeping Canada's Ports Safe with FLIR M400 Thermal Night Vision

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
