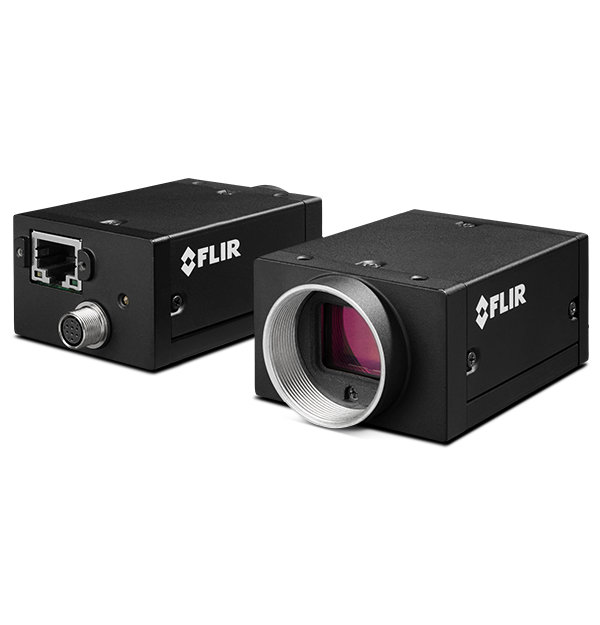

Grasshopper3 GigE

Features

Exposure Range

0.040 ms to 32 seconds

Flash Memory

2 MB non-volatile memory

Frame Rate

13

Gain Range

-6.158 dB to 24 dB

Image Buffer

128 MB

Image Processing

Gamma, lookup table, hue, saturation, and sharpness

Partial Image Modes

Pixel binning, ROI

Trigger Modes

Standard, bulb, low smear, overlapped, multi-shot

User Sets

2 user configuration sets for custom camera settings

Performance

Absolute Sensitivity Threshold (y)

15.96 (Mode 0) / 13.87 (Mode 7)

Dynamic Range dB

62.00 (Mode 0) / 63.40 (Mode 7)

Quantum Efficiency

72 (Mode 0) / 73 (Mode 7) (% at 525 nm)

Saturation Capacity (e-)

14321 (Mode 0) / 14959 (Mode 7)

Temporal Dark Noise (e-)

10.87 (Mode 0) / 9.61 (Mode 7)

Physical

ADC

14-bit

Auxiliary Output

3.3 V, 150 mA maximum

Chroma

Mono

Dimensions [W x H x L]

44 mm × 29 mm × 58 mm

Interface

GigE PoE

Lens Mount

C-mount

Mass

90 grams

Megapixels

6

Non-isolated I/O Ports

2 bi-directional

Operating Humidity

20 to 80% (no condensation)

Operating Temperature

0° to 50°C

Opto-isolated I/O Ports

1 input, 1 output

Part Number

GS3-PGE-60S6M-C

Pixel Size

4.54

Power Requirements

Power over Ethernet (PoE), or 12 V nominal (8 - 24 V) via GPIO

Readout Method

Global shutter

Resolution

2736 × 2192

Sensor Format

1"

Sensor Name

Sony ICX694

Sensor Type

CCD

Serial Port

1 (over non-isolated I/O)

Storage Humidity

20 to 95% (no condensation)

Storage Temperature

-30° to 60°C

Recommended System Configuration

Accessories included

Tripod Mount Adapter (ACC-01-0011)

CPU

3.1 GHz or equivalent CPU

Hard Drive

200 MB hard drive space

Operating System

Windows or Linux (32–bit or 64–bit)

Port

Gigabit Ethernet Port

Power Sourcing Equipment

PoE Interface Card / Injector/ Switch or Camera Power Supply(12v 1.5A, 8–pin Hirose)

RAM

2 GB RAM or more

Required Accessories

Lens, Cable, Host Adapter (GigE)

Compliance & Certifications

Compliance

CE, FCC, KCC, RoHS. The ECCN for this product is: EAR099.

Machine Vision Standard

GigE Vision v1.2

Warranty

3 years
