SF6 Optical Gas Imaging Camera


Model: GF306, 14,5 ° FOV Go to Product Support

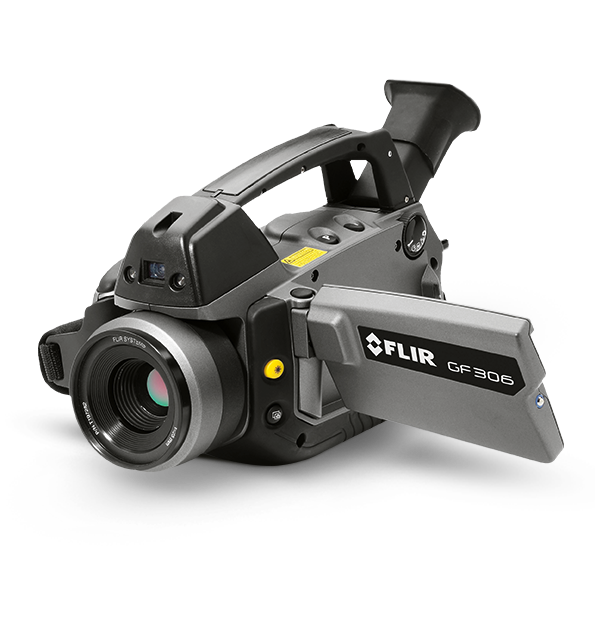

product image

The FLIR GF306 optical gas imaging camera visualizes sulfur hexafluoride (SF6) and other gas emissions without the need to shut down operations. SF6 is used in the electric power industry as an insulator and quenching medium for gas-insulated substations and circuit breakers. The portable, non-contact GF306 allows you to quickly scan substations for leaks while maintaining a safe distance from high-voltage equipment. By catching leaks early, the GF306 reduces lost revenue to breakdowns and repairs.

Sales Contact Contact Sales
  • Improve Efficiency

    GF306 inspections are faster than traditional leak-detection tools, and capable of detecting SF6, anhydrous ammonia (NH3), and ethylene (C2H4).

  • Integrate with Predictive Maintenance

    The GF306 accurately measures temperatures up to 500°C, making it a sound addition to your facility’s predictive maintenance program.

  • Save Gas, and Revenue

    Reduce revenue loss by detecting gas leaks efficiently, at a safe distance away from high-voltage areas.

Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

Detector Pitch
30 µm
< 15 mK @ 30°C (86°F)
±1°C (±1.8°F) for temperature range (0°C to 100°C, 32°F to 212°F) or ±2% of reading for temperature range (>100°C, >212°F)
Spectral Range
10.3 – 10.7 µm
Imaging & Optical
Camera Control
Remote camera control via USB
Camera f-number
Color Palettes
Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Detector Pitch
30 µm
Detector Type
Focal plane array, cooled QWIP
Dynamic Range
14-bit, Real-time non-radiometric recording: MPEG4/H.264 (up to 60 min./clip) to memory card3
Field of View
14.5° × 10.8°
Automatic (one touch) or manual (electric or on the lens)
Frame Rate [Full Window]
60 Hz
Image Modes
IR image, visual image, High Sensitivity Mode (HSM)
Menu Commands
Level/span, auto adjust continuous/manual/semi-automatic, zoom, palette, start/stop recording, store image, playback/recall image
< 15 mK @ 30°C (86°F)
On Camera Display
Built-in widescreen, 4.3 in. LCD, 800 x 480 pixels
320 x 240 pixels
Sensor Cooling
Stirling Microcooler (FLIR MC-3)
Spectral Range
10.3 – 10.7 µm
Video Recording & Streaming
Real-time non-radiometric streaming: RTP/MPEG4
Visual Image
3.2 MP from integrated visible camera
Visual Video
MPEG4 (25 min./clip) to memory card
1-8x continuous, digital zoom
Measurement & Analysis
±1°C (±1.8°F) for temperature range (0°C to 100°C, 32°F to 212°F) or ±2% of reading for temperature range (>100°C, >212°F)
Automatic Gain Control
Continuous/manual, linear, histogram
25 g (IEC 60068-2-27) / 2 g (IEC 60068-2-6)
Temperature Range
–40°C to 500°C (–40°F to 932°F)
Communication & Data Storage
Image Storage Capacity
> 1200 images (JPEG) with post-process capability per GB on memory card
Storage Media
Removable SD or SDHC memory card; two card slots
Packaging Size
400 x 190 x 510 mm (15.7 x 7.5 x 20.1 in.)
Size [L x W x H ] w Lens
305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.)
Weight [incl lens & batteries]
2.48 kg (5.47 lb.)
Battery System
Rechargeable Li-ion battery
AC adapter 90-260 VAC, 50/60 Hz or 12 V from a vehicle
Environmental & Certifications
IP 54 (IEC 60529)
UNC 1/4"-20
Operating Temperature Range
–20°C to 40°C (–4°F to 104°F)
Storage Temperature Range
–30°C to 60°C (–22°F to 140°F)
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
