Optical Gas Imaging Camera For Gas Leak Detection

FLIR G300 a Series

Model: FLIR G300 a, 14.5° fixed lens
Go to Support Page

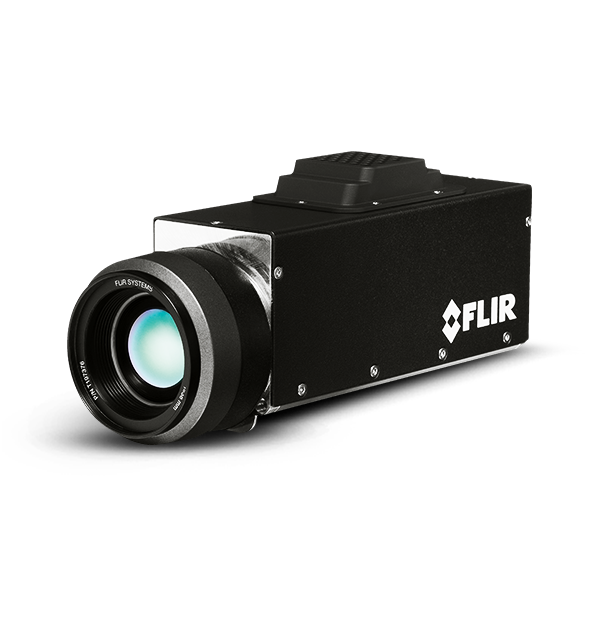

product image

The FLIR G300 a optical gas imaging (OGI) camera visualizes gas, so you can monitor installations in remote or hazardous areas for gas leaks. Through continuous monitoring, you can catch dangerous, costly hydrocarbon or volatile organic compound (VOC) leaks and take immediate action. OGI cameras are widely used in industrial settings, such as natural gas processing plants and offshore platforms. It can be easily integrated in housings with application-specific requirements.

Fixed OGI Monitoring For Remote Installations

  • Easy To Control

    The G300 a is easily controlled over Ethernet from a safe distance, and can be integrated in a TCP/ IP network.

  • See Even the Smallest Leaks

    The cooled 320 x 240 detector produces crisp thermal images with a high sensitivity mode for detecting the smallest leaks.

  • Detects a Variety of Gases

    Benzene, Ethanol, Ethylbenzene, Heptane, Hexane, Isoprene, Methanol, MEK, MIBK, Octane, Pentane, 1-Pentene, Toluene, Xylene, Butane, Ethane, Methane, Propane, Ethylene, and Propylene.

Specifications
Overview
Detector Type
Focal Plane Array (FPA), cooled InSb
Housing material
Aluminum
IR Resolution
320 × 240 pixels
Spectral Range
3.2–3.4 µm
Zoom
1–8× continuous, digital zoom
Connections & Communications
Ethernet
Control, result and image
Ethernet Communication
TCP/IP socket-based FLIR proprietary
Ethernet Connector Type
RJ-45
Ethernet Image Streaming
16-bit 320 × 240 pixels at up to 10 Hz
Ethernet Protocols
TCP, UDP, RTSP, RTP, HTTP, ICMP, IGMP, ftp,DHCP, MDNS (Bonjour), SMB/CIFS
Ethernet Standard
IEEE 802.3
Ethernet Type
100 Mbps
Ethernet Video Streaming
640 × 480 pixels at up to 15 Hz, MPEG-4, ISO/IEC 14496-1 MPEG-4 ASP@L5
Interface
Ethernet / HDMI
USB
Control and image
USB - Communication
TCP/IP socket-based, Microsoft RNDIS and/or USB video class
USB - Connector Type
USB micro
USB - Image Streaming
16-bit 320 × 240 at 30 Hz
USB - Protocols
TCP, UDP, RTSP, RTP, HTTP, ICMP, IGMP, ftp,DHCP
USB - Standard
2.0 High Speed
USB - Video Streaming
640 × 480 pixels at 30 Hz
Video Out
Digital Video Output (image)
Environmental
Directives
Low voltage directive: 2006/95/EC , EMC: 2004/108/ EC , RoHS: 2002/95/EC, WEEE: 2002/96/EC
EMC
EN61000-6-4 (Emission) / EN61000-6-2 (Immunity) / FCC 47 CFR Part 15 class A (Emission) / EN 61 000-4-8, L5
Humidity (Operating and Storage)
IEC 68-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) (2 cycl)
Operating Temperature Range
–20°C to +50°C (–4°F to +122°F)
Shock
25 g (IEC 60068-2-27)
Storage Temperature Range
–30°C to +60°C (–22°F to +140°F)
Vibration
2 g (IEC 60068-2-6)
Imaging & Optical
Automatic Image Adjustment
Continuous/manual; linear or histogram based
Digital image enhancement
Noise reduction filter, High Sensitivity Mode (HSM)
f-number
1.5
Field of view (FOV)
14.5 x10.8 with 38 mm lens
Focus
Automatic using FLIR SDK, or manual
Full Frame Rate
60 Hz
Image Modes
IR-image, High Sensitivity Mode (HSM)
Manual Image Adjustment
Level/span
Minimum Focus Distance
0.5 m (1.64 ft.) for 38 mm lens
Non-radiometric IR video streaming
RTP/MPEG4
Measurement & Analysis
Temperature Range
–20°C to +350°C (–4°F to +662°F)
Thermal Sensitivity/NETD
<15 mK @ +30°C (+86°F)
Other
Cameras size incl lens [L x W x H]
242x80x105mm (9.5x3.1x4.1 in.) incl. 14.5° lens
Power
DC Operation
10–28 V DC, polarity protected
Start Up Time
Typically 7 min. @ 25°C (+77°F)
