Intelligent Fixed-Mount Skin Temperature Screening

FLIR Elara™ FR-345-EST

Go to Product Support

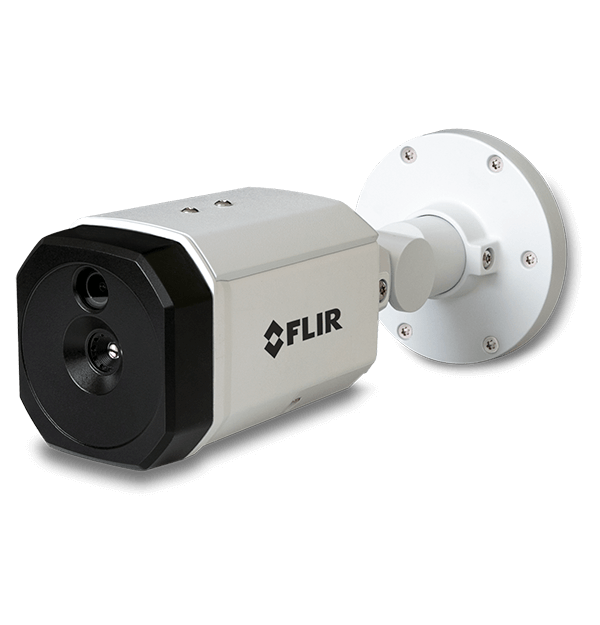

product image

The FLIR Elara FR-345-EST is an affordable, fixed-mount radiometric camera for accurately measuring skin temperature at medium- to high-throughput entry control points. Equipped with on-edge, intelligent face detection, Elara FR-345-EST issues on-screen prompts to individuals when they need to remove glasses, while also guiding them to the correct position for best measurement. The non-contact camera automatically locates and measures the inner canthus (corner of the eye) within one second and provides an instant pass/fail graphic to the individual. Integration with VMS systems further streamlines workflow and decision-making for facilities, while helping security personnel maintain a safe distance from potential health risks. Elara FR-345-EST does not require or save personally identifiable information (PII) for skin temperature screening.

Contact Sales

  • Fast, Automated, and Accurate Skin Temperature Screening

    Precise radiometric thermal camera automatically locates and measures the temperature of the inner canthus (corner of the eye).

  • Flexible VMS and Access Control Integrations

    Seamless user experience through major VMS platforms simplifies installation, speeds workflow, and promotes faster decision-making.

  • Intelligence at The Edge

    On-camera algorithms provide rapid, reliable, and actionable screening results with adaptive alarm thresholds and instant feedback.

Why Measure the Inner Canthus?

Why Measure the Inner Canthus?

While the forehead is easier to quickly screen, it is more susceptible to environmental interferences and more likely to generate measurement errors. Research has shown that the corner of the eye - the region medially adjacent to the inner canthus - provides a more accurate estimate of core body temperature than other areas of skin. This is because skin at the canthi is thin (decreasing insulating effects), is less exposed to environmental factors, and is directly over major arteries which increase blood flow and heat transfer.

Contact Sales

Want more information on this product?

Call 1-800-322-3731 to speak with a knowledgeable specialist.

Array Format (NTSC)
320 x 256
Detector Type
Long-Life, Uncooled VOx Microbolometer
Pixel Pitch
17 µm
IEEE 802.1x, TLS Authentication - control & streaming, Digest authentication, HTTPS encryption, Encrypted FW upload, Access control via firewall
Thermal Frame Rate
Visible Sensor Type
Connections & Communications
10/100 Mbps
Network APIs
ONVIF Profile S
0-95% relative
IP Rating (dust & water ingress)
Operating Temperature Range
15 to 45°C
Storage Temperature Range
-40 to 70°C
Vandal Resistance
Imaging & Optical
Field of view (FOV)
45° × 34°
Focal Length
4 mm
Lens Field of View
HFOV = 75°
VFOV = 44°
Streaming Resolution
Thermal: upscaled to VGA (640 × 480)
Visible: 1080p (1920 × 1080), 720p (1280 × 720), VGA (640 × 480)
Thermal f number
Measurement & Analysis
Object Temperature Range
15 to 45°C (59 to 113°F); camera provides contrast from -20 to 120°C (-4 to 248°F) but will not provide temperature information
Screening Mode Subject Distance
Accuracy [Drift] in Screening Mode
±0.5°C (±0.9°F)
Input Voltage
12-30 VDC (±10%), 24 VAC (21-28 VAC), 802.3at (PoE+)
Power Consumption
17 W
System Integration
Digital I_O
Input: one dry alarm contact
Output: one photo relay contact 1A max at 24 VAC/30 VDC
Video & Recording
Video Compression
Two independent channels of H.264 or M-JPEG for visible
One channel of H.264 or M-JPEG for thermal
Visible Camera
0.05 Lux (at f1.6 AGC ON, 30FPS)
Visible f number
Media Gallery
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
