FLIR Elara DX-Series

Model: DX-650, 640 x 480, 50° FOV
Go to Product Support

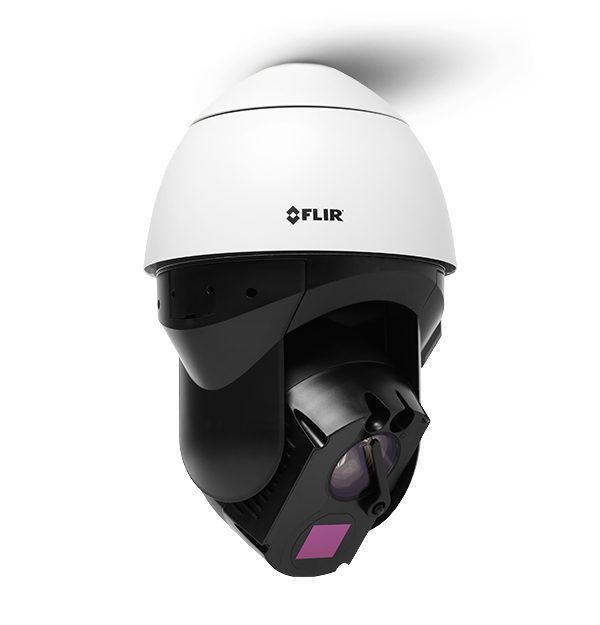

product image

The FLIR Elara™ DX-Series multispectral pan/tilt/zoom (PTZ) security camera provides full situational awareness in the most punishing environments. Combining thermal and visible light imagers, the Elara DX-Series gives operators the ability to monitor large areas in complete darkness, glaring light, and adverse weather. The exceptional detection and identification capabilities of multispectral cameras help integrators provide solutions for challenging imaging problems at critical infrastructure sites and remote facilities.

  • MULTISPECTRAL IMAGING IN ANY CONDITION

    Integrated thermal and visible sensors capture sharp video where other PTZ cameras cannot.

  • DESIGNED TO WITHSTAND EXTREME ENVIRONMENTS

    Built to handle the challenges of critical infrastructure sites and other demanding locations.

  • SUPERIOR MONITORING OF LARGE AREAS AND CHANGING ENVIRONMENTS

    PTZ capability gives operators continuous visibility in large areas

Specifications
Overview
Detector Type
Long-Life, Uncooled VOx Microbolometer
Focal Length
Visible: 6.5mm - 202mm
Focus Range
Athermalized, Focus-Free
Optical Characteristics
FOV: 50° × 38°
Focal Length: 8.7 mm
Sensitivity
Visible:
Color: 0.25 Lux (@ (f1.6 AGC On, 30FPS)
B/W: 0.10 Lux (@ (f1.6 AGC On, 30FPS)
Zoom
Visible: Optical Zoom: 31
Thermal E-Zoom
Continuous E-Zoom to 4×
Connections & Communications
Ethernet
10/100/1000 Mbps
Network APIs
FLIR SDK, FLIR CGI, ONVIF Profile S
Supported Protocols
IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP
Environmental
Humidity
0-95% relative
IP Rating (dust & water ingress)
IP66
Operating Temperature Range
-40°C to 60°C
Shock
IEC 60068-2-27
Storage Temperature
-55°C to 85°C
Vibe
IEC 60068-2-64
Imaging & Optical
Array format
640 × 480
Lens Field of View
HFOV: 61.8° - 2.15°
VFOV: 36.65° - 1.2°
Sensor Type
Visível: [BR] Full HD 4K [BR] CMOS tipo 1/1.8
Spectral Range
7.5 μm to 13.5 μm
Streaming Resolution
Thermal: QVGA to VGA
Visible: VGA to 4k
Thermal Image Settings
Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast
Measurement & Analysis
Programmable Presets
256
Power
Input Voltage
24 VAC(±10%)
Universal POE injector
PTZ
Tilt Speed
-10° to 190°
0.1° to 60°/sec
Pan Speed
Continuous 360°
0.1° to 90° /sec
Video & Recording
Video Compression
Thermal: One channel of H.264 & M-JPEG
Visible: Two independent channels of H.264 & M-JPEG
Video Image Uniformity Optimization
Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
Video Thermal AGC Region of Interest [ROI]
Default, Presets and User definable to insure optimal image quality on subjects of interest
