Fixed Mount FLIR EST™ Thermal Screening Solutions


Model: A500-EST, 24° Lens
Go to Product Support

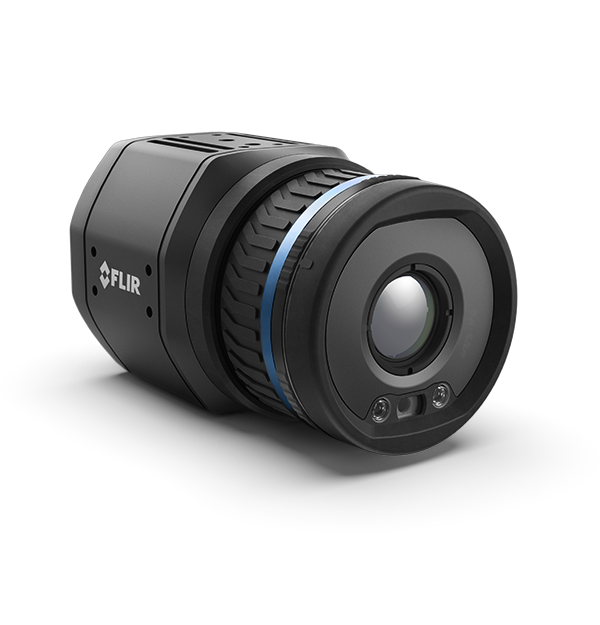

product image

The FLIR A500-EST is a non-contact screening tool that can serve as a first line of defense against potential health risks. This FLIR EST™ thermal screening solution detects and visualizes heat to quickly identify individuals with an elevated skin temperature. With a 464 × 348 pixel thermal detector and on-camera FLIR Screen-EST™ Mode, the A500-EST can be deployed as a single, standalone screening station or in a network. Compatibility with industry standards such as Modbus TCP, MQTT, RESTful API for data transfer and RTSP for video makes third-party integration easy. The camera can be connected to most Video Management Systems and is compatible with FLIR Screen-EST™ Desktop software.


    Integrates easily into web services with RESTful API over XML or JSON; offers standard EtherNet and Wi-Fi connectivity.


    Optimal screening accuracy with automatic ambient drift compensation; support for external black body compensation if desired.


    On-camera FLIR Screen-EST Mode does not store images or personal information and allows for social distancing in screening setups.

Alarm Functions
On any selected measurement function, digital in, internal camera temperature
Alarm Output
Digital out, email (SMTP) (push), EtherNet/IP (pull), file transfer (FTP) (push), Modbus TCP master write (push), Modbus TCP slave (pull), MQTT (push), Query over RESTful API (pull), store image or video
Base Mounting
4× M4 on 4 sides
Field of view (FOV)
24° × 18°
Housing material
IR Resolution
464 × 348
Object Temperature Range
15°C to 45°C (59°F to 113°F); camera provides contrast from -20°C to 120°C (-4°F to 248°F) but will not provide temperature information
Size (L x W x H)
123 × 77 × 77 mm (4.84 × 3.03 × 3.03 in)
Web interface
0.82 kg (1.8 lb), camera only
Contrast Enhancement
FSX / Histogram equalization (IR only)
FLIR Screen-EST Mode
Accuracy [Drift] in Screen-EST Mode
±0.3°C (±0.5°F)
Connections & Communications
Digital I/O connector type
M12 12-pin A-coded, Male (shared with external power)
Digital I/O isolation voltage
500 VRMS
Digital input purpose
NUC, NUC disable, alarm, update screening reference sample
Digital Inputs
2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital Output Purpose
As a function of alarm, output to external device (e.g. when screening alarm is triggered); fault (NC)
Digital Outputs
3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as fault output (NC)
For control, result, image, and power
Ethernet Communication
TCP/IP socket-based FLIR proprietary
Ethernet Connector Type
M12 8-pin X-coded, female; RP-SMA, female
Ethernet Power
Power over Ethernet, PoE IEEE 802.3af class 3
Ethernet Protocols
EtherNet/IP, IEEE 1588, Modbus TCP Master, Modbus TCP Slave, MQTT, SNMP; TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP
Ethernet Standard
IEEE 802.3
Ethernet Type
1000 Mbps
Yes. RP-SMA, female connector
Ethernet Interface
Wired, Wi-Fi
Atmospheric transmission correction
Based on inputs of distance, atmospheric temperature, and relative humidity
ETSI EN 301 489-1 (radio), ETSI EN 301 489-17 (radio), EN 61000-4-8 (magnetic field), FCC 47 CFR Part 15 Class B (emission US), ISO 13766-1 (EMC - Earth-moving and building construction machinery), EN ISO 14982 (EMC - Agricultural and forestry machinery)
Emissivity Correction
Variable from 0.01 to 1.0
IEC 60529, IP 54, IP66 with accessory
Humidity (Operating and Storage)
IEC 60068-2-30/24 hours, 95% relative humidity, 25°C–40°C (77°F–104°F)/2 cycles
Operating Temperature Range
-20°C to 50°C (-4°F to 122°F); cooling plate needed for temperatures above 40°C (104°F)
Radio Spectrum
FCC 47 CFR Part 15 Class C (2.4 GHz band US), FCC 47 CFR Part 15 Class E (5 GHz band US), RSS-247 (2.4 GHz and 5 GHz band Canada), ETSI EN 300 328 V2.1.1 (2.4 GHz band EU), ETSI EN 301 893 V2.1.1 (5 GHz band EU)
IEC 60068-2-27, 25 g
Tripod Mounting
UNC ¼″-20 on 2 sides
IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal; IEC 61373 Cat 1 (Railway)
Lens Transmission Correction
Automatic, based on signals from internal sensors
Measurement Frequency
Up to 10 Hz
Schedule Response
sftp (image), SMTP (image and/or measurement data/result)
File Storage & Data Transfer
Video Storage
Up to 10 H.264 videos stored as a function of alarm; 5 sec before or after alarm
Imaging & Optical
Camera f-number
Detector Type and Pitch
Uncooled microbolometer, 17 µm
Focal Length
17 mm (0.67 in)
One-shot contrast, motorized, and manual
Image Frequency
30 Hz
Lens Identification
Radiometric IR video streaming
RTSP protocol
For measurement results: EtherNet/IP (pull); Modbus TCP master (push); Modbus TCP slave (pull); MQTT (push); Query over REST API (pull): measurements and still image (radiometric JPEG, visual 640 × 480, visual 1280 × 960) read access only; web interface
Spatial resolution (IFOV)
0.90 mrad/pixel
Spectral Range
7.5–14 µm
Streaming Resolution
RTSP video streaming (source 0) - 640 × 480 pixels; RTSP video streaming (source 1) - 1280 × 960; radiometric streaming: 640 × 480 pixels
Video Streaming
RTSP protocol
With / Without
Visible Camera
Measurement & Analysis
External Optics & Windows Correction
Based on input of optics/window transmission and temperature
Measurement Corrections
Global object parameters, local parameters per analyze function, external blackbody correction
Measurement Presets
Reflected apparent temperature correction
Based on input of reflected temperature
Automatic hot & cold detection
Max/min temperature value and position shown within box
Thermal Sensitivity_NETD [typical]
<40 mK @ 30°C (86°F)
External Power Operation
24/48 V DC 8 W max
Power Connection
M12 12-pin A-coded, male (shared with Digital I/O)
Power Consumption
7.5 W at 24 V DC typical/7.8 W at 48 V DC typical/8.1 W at 48 V PoE typical
External Voltage
Allowed range 18–56 V DC
Image Source
Visual / IR / MSX
Shipping Information
Infrared camera with lens, Ethernet cable M12 to RJ45F (0.3 m/0.98 ft), printed documentation including login for web interface
Storage Media
Image Storage
Up to 100 FLIR radiometric JPEGs, stored as a function of alarm, scheduling, or user interaction (camera web)
