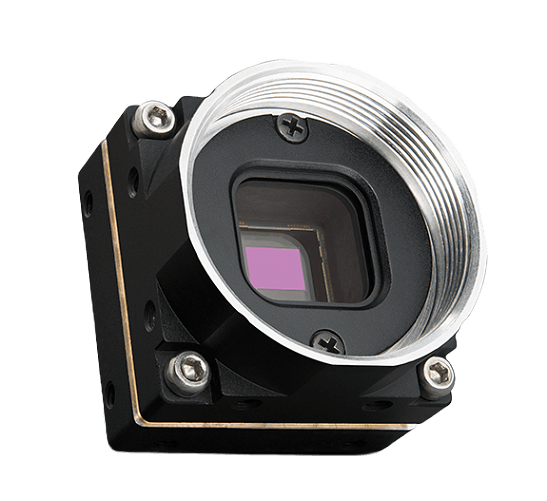

Firefly S

Features

Acquisition Modes

Single Frame Multi Frame Continuous

Exposure Range

29.0 µs to 30.0 S

Flash Memory

24 MB non-volatile memory

Frame Rate

60

Gain Range

0.0 to 48.0 dB

Image Buffer

32 MB

Image Processing

Gamma, lookup table, denoise, and sharpness

Partial Image Modes

ROI

User Sets

2 user configuration sets for custom camera settings

Performance

Absolute Sensitivity Threshold (y)

9.57

Dynamic Range dB

65.56

Power Consumption

2.2 W

Quantum Efficiency Blue

46.47 (470 nm)

Quantum Efficiency Green

56.73 (525 nm)

Quantum Efficiency Red

43.74 (630 nm)

Saturation Capacity (e-)

10300

Temporal Dark Noise (e-)

4.93

Physical

ADC

10-bit

Auxiliary Output

3.3 V, 120 mA maximum

Chroma

Color

Dimensions [W x H x L]

27 mm x 27 mm x 14.5 mm

Interface

USB 3.1 Gen 1

Lens Mount

CS-mount

Mass

20 g

Megapixels

1.6

Operating Humidity

20% to 80% (no condensation)

Operating Temperature

0°C to 85°C (case)

Part Number

FFY-U3-16S2C-CS

Pixel Size

3.45

Power Requirements

5 V via USB 3.1 interface

Readout Method

Global shutter

Resolution

1440 x 1080

Sensor Format

1/2.9"

Sensor Name

Sony IMX296

Sensor Type

CMOS

Serial Port

1 (over non-isolated I/O)

Storage Humidity

20% to 95% (no condensation)

Storage Temperature

-30°C to 60°C (ambient)

Recommended System Configuration

CPU

3.1 GHz or equivalent CPU

Hard Drive

200 MB hard drive space

Operating System

Windows or Linux (32–bit or 64–bit)

Port

USB 3 Port

RAM

4 GB RAM or more

Compliance & Certifications

Compliance

CE, FCC, KCC, RoHS, REACH. The ECCN for this product is: EAR099

Machine Vision Standard

USB3 Vision v1.0

Warranty

3 years
