Thermal Security Camera

TRITON™ F-Series

Model: FLIR F-304, 320x240, 4.6° FOV, NTSC
Go to Support Page

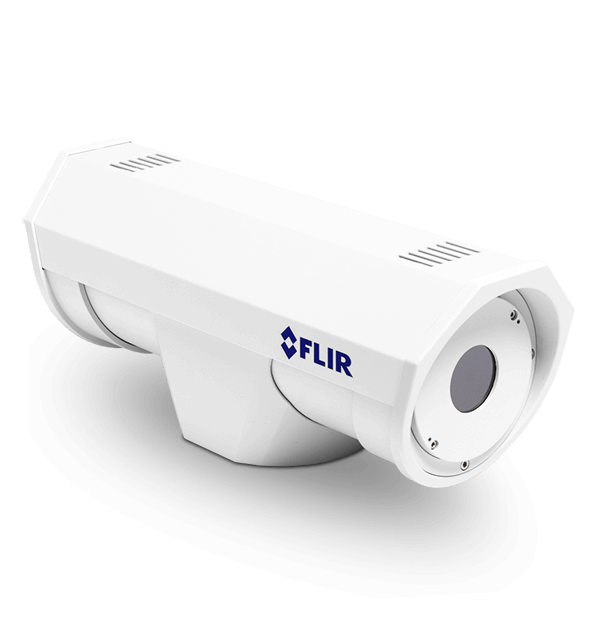

product image

F-Series high-resolution thermal security cameras are fixed-site cameras that give you video and control over both IP and analog networks. F-Series cameras define the new standard of performance with five models that provide 640 × 480 thermal resolution to give you greater image detail, longer detection range, and better analytics performance than ever before.

Long-range threat detection with enhanced analytics

  • Sharper thermal images

    The F-Series creates greater thermal scene detail, improving threat detection and alarm assessment from greater distances.

  • Plug-and-play integration

    The camera uses open IP standards and is ONVIF-compliant and streams digital video in H.264, MPEG-4, and M-JPEG formats.

  • Wider fields of view

    The F-Series improves coverage without compromising range performance, optimizing coverage efficiency while lowering overall installation costs.

Why thermal is the right choice to protect perimeters

Why thermal is the right choice to protect perimeters

FLIR’s advanced thermal security cameras provide the most complete perimeter intrusion protection for locations large and small. Because thermal cameras detect heat, they can reveal intruders in all lighting conditions, including complete darkness, rain, light fog, and smoke. As a result, FLIR thermal security cameras offer affordable, high-performance 24/7 intrusion detection for enterprise, commercial and residential applications. FLIR cameras are also certified by major 3rd party integrators.

Detector Type
Long-Life, Uncooled VOx Microbolometer
Dimensions (L x W x H)
18.1" × 5.5" × 6.3" (460 × 140 × 160 mm)
Focal Length
100 mm
Thermal Frame Rate
NTSC: 30 Hz or 7.5 Hz PAL: 25 Hz or 8.33 Hz
~10.2 lb (4.8 kg); Configuration Dependent
Thermal Effective Resolution
Thermal Focus Range
Athermalized, Focus-Free
Thermal Pixel Pitch
25 µm
Thermal Spectral Range
7.5 µm to 13.5 µm
Thermal Zoom
2× & 4x E-zoom
Connections & Communications
Composite Video NTSC or PAL
Yes: Hybrid IP & Analog
External Analytics Compatible
Network APIs
Nexus SDK for comprehensive system control and integration Nexus CGI for http command interfaces ONVIF 2.0 Profile S
Serial Control Interfaces
RS-232/-422; Pelco D, Bosch
MIL-STD-810F, Method 521.1; 6 mm of ice
0-95% relative
IP Rating (dust & water ingress)
Operating Temperature Range
-50°C to 70°C continuous operation -40°C to 70°C cold start
MIL-STD-810F "Transportation"
Storage Temperature Range
-55°C to 85°C
IEC 60068-2-27
Imaging & Optical
Array format
320 × 240
Field of View
4.6° × 3.7°
Input Voltage
24 VAC (21-30 VAC) 24 VDC (21-30 VDC)
Power Consumption
24 VDC = 10 W; 46 W (max w/heaters) 24 VAC = 15 VA; 51 VA (max w/heaters)
Video & Recording
Video Compression
Two independent channels of streaming MPEG-4, H.264, or M-JPEG for each of two cameras; multiple streams per channel.
Video Image Uniformity Optimization
Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
Video Streaming Resolution
NTSC: D1 (720 × 480) 4SIF (704 × 480) VGA (640 × 480) SIF (352 ×240) QVGA (320 × 240) PAL: D1 (720 ×576) 4CIF (704 × 576) CIF (352 × 288)
Video Thermal AGC Modes
Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting
Video Thermal AGC Region of Interest [ROI]
Default, Presets and User definable to insure optimal image quality for subjects of interest
