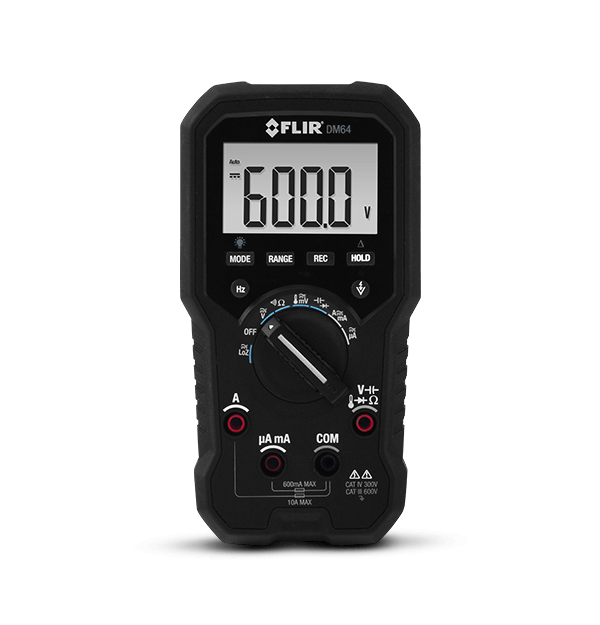

FLIR DM64

Measurement & Analysis

AC/DC Amps

Range: 10.00 A Basic Accuracy: ±1.5% / ±1.0%

AC/DC LoZ V

Range: 600.0 V Basic Accuracy: ±2.0%

AC/DC mAmps

Range: 600.0 mA Basic Accuracy: ±1.0% / ±0.7%

AC/DC microAmps

Range: 6000 µA Basic Accuracy: ±1.5% / ±1.0%

AC/DC mVolt

Range: 600.0 mV Basic Accuracy: ±1% / ±0.4%

AC/DC Voltage

Range: 600.0 V Basic Accuracy: ±1.0% / ±0.4%

Capacitance

Range: Basic Accuracy: 200.0 nF ±1.5% 200.0 µF ±1.5% 10 mF ±4.5% 10.00 mF ±5.0%

Continuity check

Between 30 Ω and 480 Ω

Diode Test

Range: 3.000 V Basic Accuracy: ±0.9%

Frequency Range

Range: 50.00 kHz

Resistance

Range: Basic Accuracy: 600.0 kΩ ±0.5% 6.00 MΩ ±0.3% 60.00 MΩ ±0.9%

Thermocouple

–40 to 752.0°F DMM ± (1.0% + 3°F), –40 to 400°C DMM ± (1.0% + 1.5°C)

True RMS

Yes

VFD AC Voltage

Range: 600.0 V RMS Basic Accuracy: ±1.0%

Power

Auto Power Off

Yes

Battery

3 AA batteries; optional TA04 Li-Poly rechargeable battery

Environmental & Certifications

Drop test

2 m

IP Rating

IP40

Warranty

Limited 3-Year
