True RMS Power Clamp (Wireless)

FLIR CM83

Go to Product Support
product image

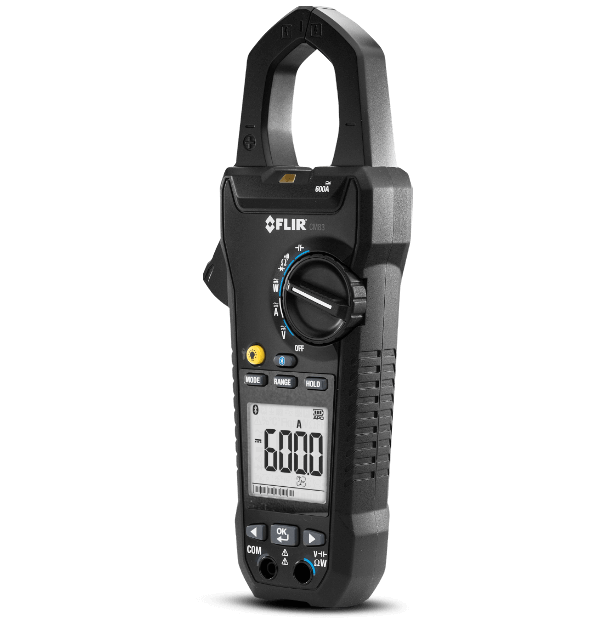

The FLIR CM83 is an industrial-grade power clamp meter engineered with advanced power analysis, harmonics measurements, and variable frequency drive (VFD) filtering functions to meet the needs of electrical troubleshooters. The meter features Bluetooth® technology to connect compatible mobile devices for remote viewing and sharing, and METERLiNK® technology to wirelessly embed electrical readings into radiometric infrared images on compatible FLIR thermal cameras.

$495.00
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
  • Superior Accuracy

    The True RMS clamp meters provide VFD Mode for superior accuracy while working on VFD-controlled equipment, and advanced power efficiency and harmonics measurements enable system-level performance analysis.

  • Reliable Performance

    Features Inrush mode to capture AC Current spikes during start-up, and phase-rotation testing to ensure motor and power source alignment.

  • View Data Remotely, Share Instantly

    View readings from your mobile device via Bluetooth; METERLiNK technology wirelessly embeds data into thermal images on compatible FLIR cameras.

Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Jaw Opening
37 mm (1.45", 1500MCM)
AC/DC Voltage
Range 999.9 V Max / Basic Accuracy +/- 1% / 0.7%
Measurement & Analysis
AC VFD Voltage
Range 1000 V / Basic Accuracy +/- 1%
AC/DC Current
Range 599.9 A Max / Basic Accuracy +/- 2%
AC/DC Voltage
Range 999.9 V Max / Basic Accuracy +/- 1% / 0.7%
Active Power
Range 9.999 kW to 599.9 kW, (10 V, 5 A min) / Basic Accuracy +/- 3%
Capacitance
Range 3.999 mF Max / Basic Accuracy +/- 1.9%
Category Rating
CAT IV-600V, CAT III-1000V
Continuity Threshold
Range 30 Ω / Basic Accuracy +/- 1%
Diode Test
Range 0.4 to 0.8 V / Basic Accuracy +/- 0.1V
Frequency
Range 20.00 Hz to 9.999 kHz / Basic Accuracy +/- 0.5%
Harmonics
Range 1st-25th Order / Basic Accuracy +/- 5%
Inrush Current
Range 599.9 ACA Max (Integration Time 100 ms) / Basic Accuracy +/- 3%
Resistance
Range 99.99 kΩ Max / Basic Accuracy +/- 1%
Total Harmonic Distortion
Range 0.0 to 99.9% / Basic Accuracy +/- 3%
Communication & Data Storage
Bluetooth range max
32 ft (10 m)
Power
Battery type
6 x AAA
General
Jaw Opening
37 mm (1.45", 1500MCM)
Environmental & Certifications
Certifications
CE, UL, FCC
Warranty
Limited Lifetime
