More Than Just a Clamp Meter

  • Perform safe, quick, and accurate inspections

    Safely locate potentially dangerous problems without direct contact using FLIR IGM™. Get unmatched clarity and detail in your readings with FLIR MSX®, which embeds and outlines detail onto thermal images.

  • Purpose built for all-day operation

    Built-in LED worklights for better visibility in dark or poorly lit areas, one rechargeable lithium polymer battery pack for all-day operation, and a 2 m (6.5 ft) drop test rating for durability.

  • Unmatched connectivity and analysis

    Use the FLIR METERLiNK® app to quickly and efficiently capture and store up to 30,000 radiometric images, record thermal and visual video clips, and create reports.



WORK FASTER, WORK SMARTER

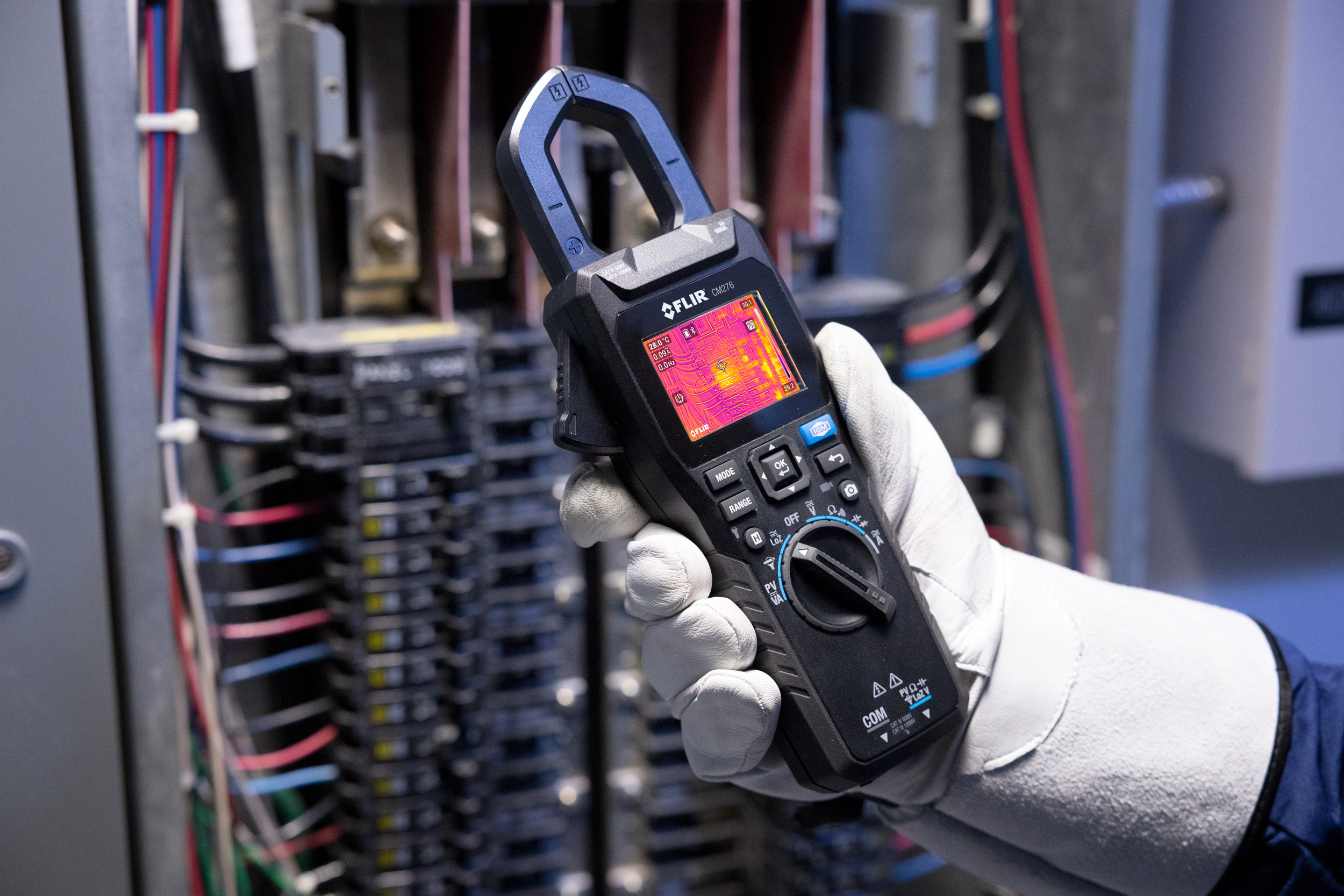

IGM™ Infrared Guided Measurement

Upgrade your testing tool with Infrared Guided Measurement IGM. Utilizing the FLIR Lepton® sensor, IGM visually guides you to hidden temperature issues so you know precisely where to focus your troubleshooting. Eliminate guesswork and boost efficiency. Impress customers by uncovering problems and showcasing solutions.





UNRIVALED IMAGE QUALITY

MSX® Image Enhancement

The FLIR CM276 clamp meter and thermal imaging camera features FLIR's unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately on the camera's display.

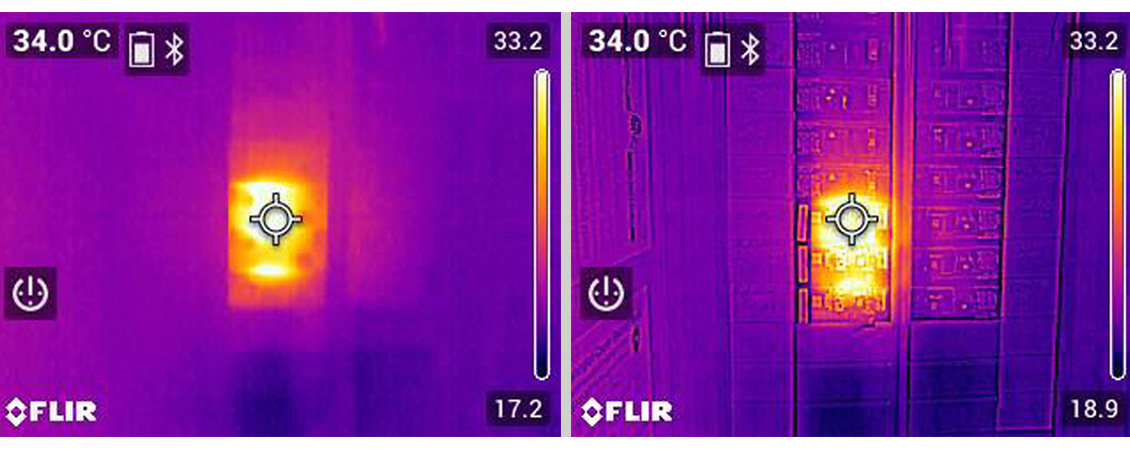

DM286_MSX_without_with_image.pngPictured left to right: without MSX® and with MSX®

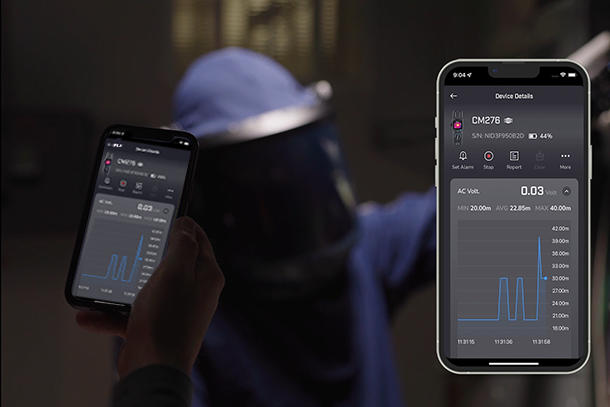

METERLiNK CM276.png

get inspection information to the people you need

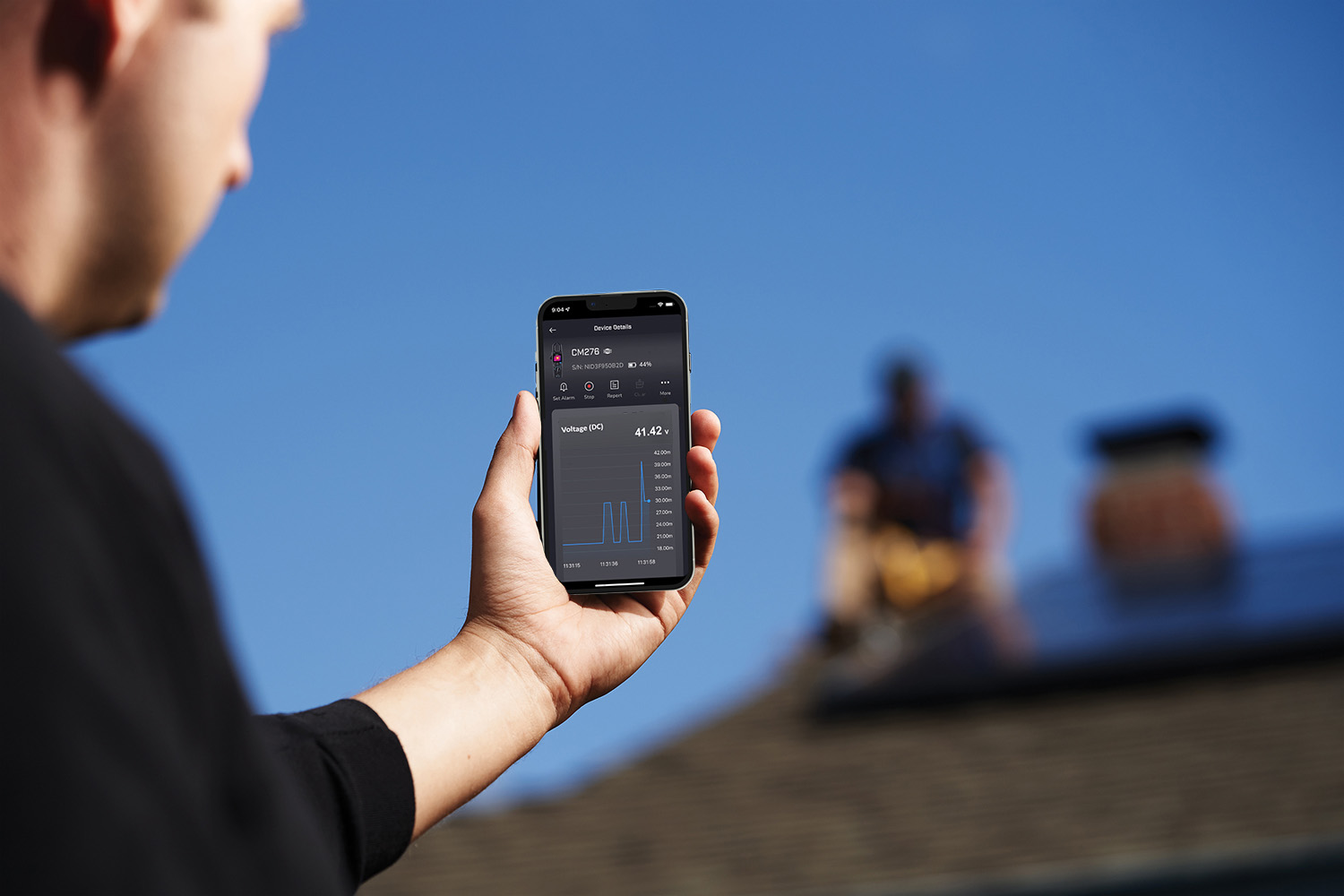

FLIR METERLiNK® App

The FLIR METERLiNK® app allows you to monitor a variety of environmental and electrical conditions simultaneously with the ability to connect with up to seven FLIR compatible meters at once. METERLiNK allows you to safely capture images and monitor hazardous areas remotely and in real time. Whether you're connecting several FLIR clamp meters, digital multimeters, or any of the new METERLiNK app compatible meters, you will be able to keep tabs on key readings around your facility and easily share them with your team.

Learn More

Specifications
IR Resolution
160 × 120 (19,200 pixels)
Display Size
2.4 in, TFT screen
Jaw Opening
35 mm (1.37 in)
AC/DC Voltage
Range 1000 V / Basic accuracy ±1.0%
Data Logging & Storage
10 sets of 30K scalar measurements, 100 images
Connectivity
Bluetooth®
Imaging & Optical
Color Palettes
Iron, rainbow, arctic, white hot, and black hot
Display Size
2.4 in, TFT screen
Field of View [V x H]
44° × 57°
Focus
Fixed
Image Modes
Thermal MSX (Multi Spectral Dynamic Imaging)
Thermal camera only
Digital camera only
IR Resolution
160 × 120 (19,200 pixels)
Sensitivity
150 mK
Spectral Response
8µm to 14 µm
Thermal Imaging Detector
FLIR Lepton® microbolometer
Measurement & Analysis
AC/DC Current
Range 600.0 A / Basic accuracy ±2.0%
AC/DC Voltage
Range 1000 V / Basic accuracy ±1.0%
Auto Range
Yes, with manual range option
Capacitance
Range 1000 µF / Basic accuracy ±1.0%
Continuity check threshold
≤30 Ω beeper on, ≥150 Ω beeper off
Diode
Range 1.5 V / Basic accuracy ±1.5%
Flex Input AC A
Range 3000 A / Basic accuracy ±1.0%
Flex Input Frequency Counter
Range: 10.00 kHz / Basic accuracy: ±0.1%
Inrush AC Current
Range 600.0 A / Basic accuracy ±3.0%
LoZ Mode AC Voltage
Range 60.00 V, 600.0 V, 1000 V / Basic accuracy ±1.0%
LoZ Mode DC Voltage
Range 60.00 V, 600.0 V, 1000 V / Basic accuracy ±1.0%
Measuring Rate
3 samples per second
PV DC Power
900 kVA / Basic accuracy ±2.0%
PV DC V
Range 1000 V / Basic accuracy ±2.0% with TA82
Range 1500 V / Basic accuracy ±2.0% with TA85/TA86 (optional accessories)
Resistance
Range 60 KΩ / Basic accuracy ±1.0%
Temperature [IR]
-10°C to 300°C (14°F to 572°F)
Temperature Accuracy
±3°C (5.4°F) or ±3% of the reading; whichever is greater
True RMS
Yes
VFD AC Current
Range 600.0 A / Basic accuracy ±2.0%
VFD AC Voltage
Range 1000 V / Basic accuracy ±1.0%
Communication & Data Storage
Connectivity
Bluetooth®
Data Logging & Storage
10 sets of 30K scalar measurements, 100 images
Storage Media
eMMC 8 GB
Power
Auto Power Off
For device: option to OFF, 2, 5, or 10 minutes
For worklight only: option to OFF, 5, 15, or 30 minutes
Battery
Rechargeable 3.7 V, 5400 mAh LiPo
General
Jaw Opening
35 mm (1.37 in)
Laser Pointer
Type: Class 1
Power: ≤0.39 mW
Wavelength: 640 nm to 660 nm
Size [L × W × H]
272 mm × 100 mm × 51.5 mm (10.7 in × 3.94 in × 2.0 in)
Weight
560 g (19.8 oz)
Worklights
2 × white LED
Environmental & Certifications
Drop test
2 m (6.5 ft)
Emissivity Settings
0.10 to 1.00 (default is 0.95); select from three presets or set manually
IP Rating
IP40
Warranty
10 year
Accessories

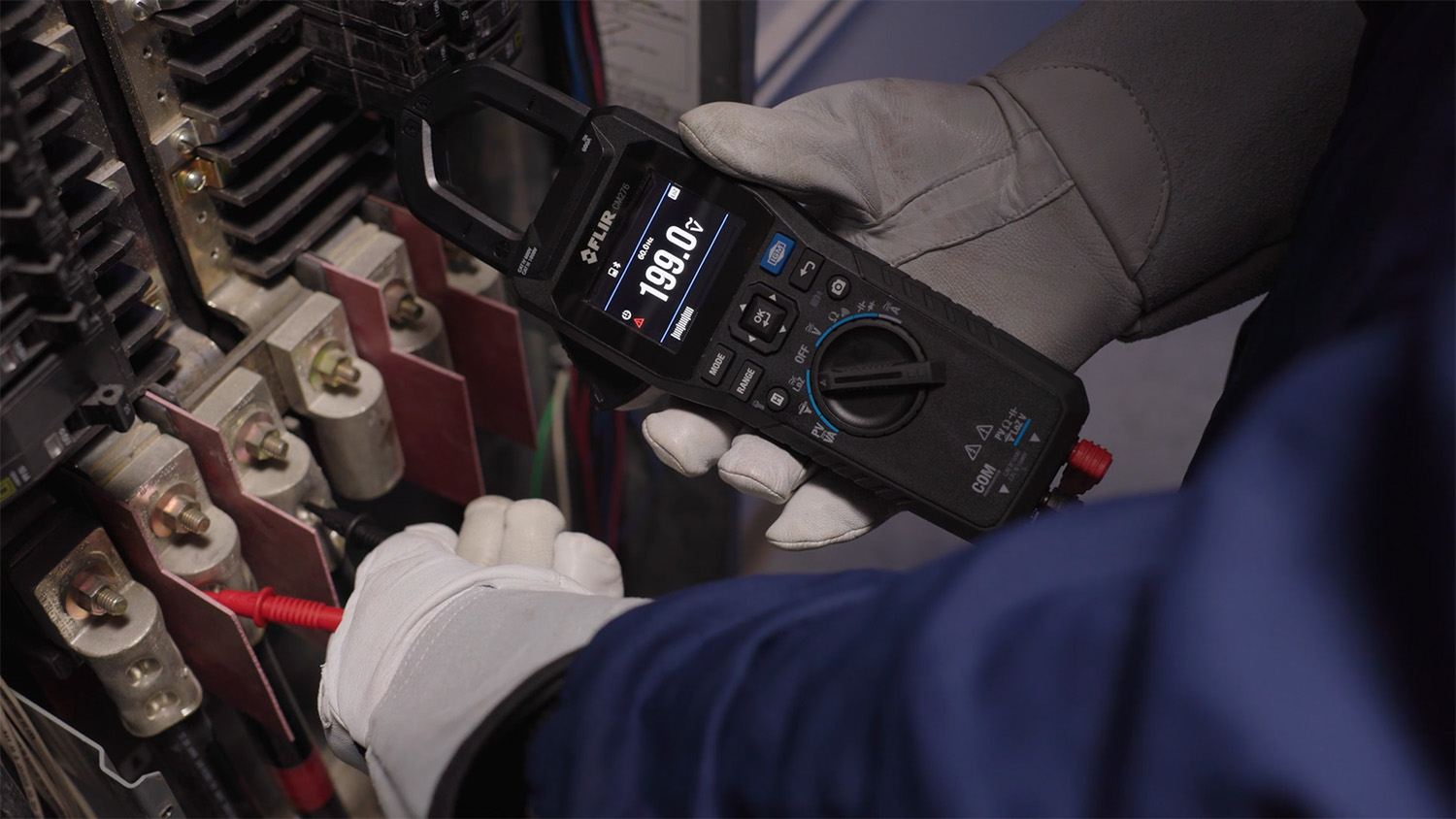

Test Leads and Probes
Media gallery
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.

FLIR CM276

$1,260.00
