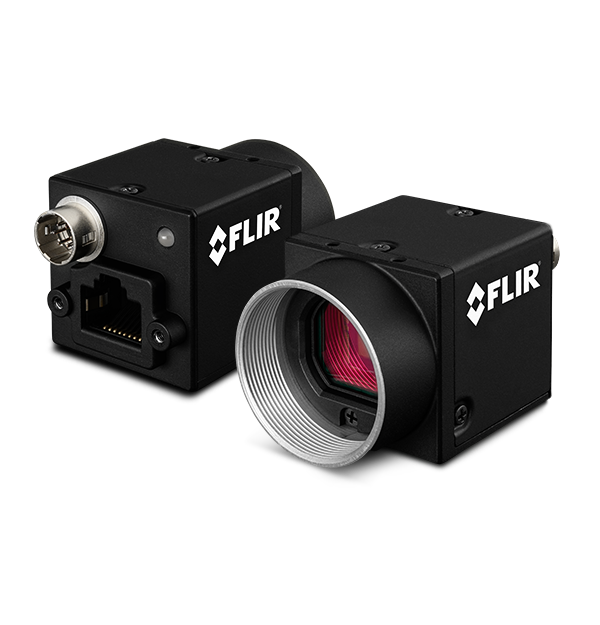

Blackfly GigE

Features

Exposure Range

0.049 ms to 32 seconds

Flash Memory

512 KB non-volatile memory

Frame Rate

30

Gain Range

-5.89 dB to 24 dB

Image Buffer

16 MB

Image Processing

Gamma, lookup table, and sharpness

Partial Image Modes

Pixel binning, decimation, ROI

Trigger Modes

Standard, bulb, low smear, overlapped, multi-shot

User Sets

2 user configuration sets for custom camera settings

Performance

Absolute Sensitivity Threshold (y)

8.55

Dynamic Range dB

61.99

Power Consumption

2.5 W

Quantum Efficiency

70 (% at 525 nm)

Saturation Capacity (e-)

7384

Temporal Dark Noise (e-)

5.37

Physical

ADC

12-bit

Auxiliary Output

3.3 V, 120 mA maximum

Chroma

Mono

Dimensions [W x H x L]

29 mm × 29 mm ×30 mm

Interface

GigE PoE

Lens Mount

CS-mount

Mass

36 grams

Megapixels

1.3

Operating Humidity

20 to 80% (no condensation)

Operating Temperature

0° to 45°C

Opto-isolated I/O Ports

1 input, 1 output

Part Number

BFLY-PGE-13H2M-CS

Pixel Size

3.75

Power Requirements

12 V nominal (5 - 16 V) via GPIO interface

Readout Method

Global shutter

Resolution

1288 × 964

Sensor Format

1/3"

Sensor Name

Sharp RJ33J4CAODT

Sensor Type

CCD

Storage Humidity

20 to 95% (no condensation)

Storage Temperature

-30° to 60°C

Recommended System Configuration

CPU

3.1 GHz or equivalent

Hard Drive

200 MB hard drive space

Operating System

Windows or Linux (32-bit or 64-bit)

Port

Gigabit Ethernet

Power Sourcing Equipment

PoE Interface Card / Injector/ Switch or Camera Power Supply (12v 1.5A, 6-pin Hirose)

RAM

2 GB RAM or more

Required Accessories

Lens, Cable, Host Adapter (GigE), Tripod Mount Adapter (ACC-01-0003)

Compliance & Certifications

Compliance

CE, FCC, KCC, RoHS. The ECCN for this product is: EAR099.

Machine Vision Standard

GigE Vision v1.2

Warranty

3 years
