Thermal MSX® Videoscope Kit with Rectangular Probe Tip

FLIR VS290-32

Go to Product Support

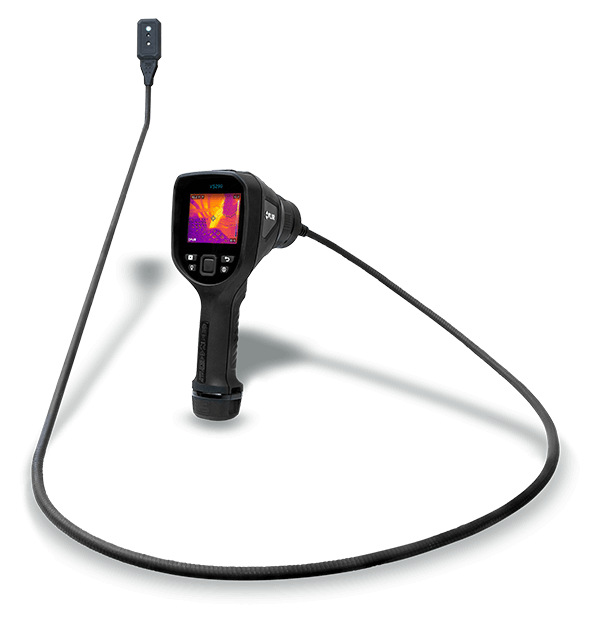

product image

The FLIR VS290-32 is an industrial thermal and visual videoscope designed to help professionals quickly and safely find hidden dangers in difficult-to-access locations, especially underground electrical distribution vaults. Featuring a 160 × 120 true thermal imager and FLIR MSX® (Multi-Spectral Dynamic Imaging), the VS290-32 enables users to catch hot spots before a failure occurs to maintain uptime. The 2 m camera probe makes it possible to easily inspect through small openings – improving productivity and reducing diagnostic time. Plus, the CAT IV 600 V safety rating makes the VS290-32 a rugged and versatile tool for the most demanding environments in utility, manufacturing, and building maintenance applications.

$6,650.00
Buy Now
FREE Shipping
Shipping & Returns
Contact Sales
  • Inspect Inaccessible Areas Safely

    Quickly find hidden faults using the 160 × 120 true thermal imager with MSX and 2 MP visual camera, without entering difficult-to-access places.

  • IDENTIFY, DOCUMENT, SHARE

    Improve workflow and communicate potential issues before they become major problems using FLIR Thermal Studio.

  • VERSATILE, RUGGED, AND RELIABLE

    CAT IV 600 V rated and offers a high level of protection against dust and water for the most demanding environments.

Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Overview
Built-in Illuminator LED
Yes
Camera size (L x W x H)
Complete kit with case: 120 × 48 × 20 cm (47 × 18.90 × 7.87 in)
Display: 26.4 × 11 × 11 cm (10.4 × 4.3 × 4.3 in)
Probe: 212.2 × 0.69 cm (83.5 × 0.3 in)
Camera weight incl battery
Complete kit with case: 13 kg (28.66 lb)
Display: 640 g (1.41 lb)
Probe: 470 g (1.04 lb)
Color Alarm (Isotherm)
Above, below
Detector Type
Focal plane array (FPA), uncooled microbolometer
Display
3.5 in RGB TFT LCD (320 × 240 pixels)
Form Factor
Side-viewing cameras
Probe Length
2 m (6.6 ft) without probe tip
Warranty
FLIR 2-10 warranty
Compliance & Certifications
Certifications
ETL, CE, RCM, FCC
Connections & Communications
Communication Interfaces
USB Type-C: data transfer/power
Environmental
EMC
EN 61326-1, EN 61000-6-2 (Immunity), EN 61000-4-2 (ESD), EN61000-6-3 (Emissions), FCC 47 CFR Part 15 Class B
Emissivity Correction
3 pre-set and 1 custom emissivity setting
Encapsulation
Probe Tip: IP67 (IEC 60529) , Main body/cable: IP54
Humidity (Operating and Storage)
5% to 90% relative humidity (RH) non-condensing
Operating Temperature Range
-10 to 50°C (14 to 122°F)
Radio Spectrum
2.4 GHz
Safety
CAT IV 600V
Shock
25 g (IEC 60068-2-29)
Storage Temperature Range
-20 to 60°C (-4 to 140°F)
Vibration
2 g (IEC 60068-2-6)
Imaging & Optical
Built-in Digital Camera
Yes
Color Palettes
Iron, Rainbow, Gray, Below alarm, Above alarm
Detector Pitch
12 µm
Digital Camera Resolution/FOV
2 MP / 83°
Field of view (FOV)
57° × 44°
Focus
Focus free
Gallery
Yes
Image Frequency
8.7 Hz
Image Modes
IR only, Visual only, MSX®
IR Resolution
160 × 120 pixels
Minimum Focus Distance
0.15 m
MSX
Embosses visual details on full resolution thermal image
Spectral Range
8 µm to 14 µm
Thermal Sensitivity/NETD
<100 mK
Measurement & Analysis
Accuracy
At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)
0 to 100°C (32 to 212°F): ±3°C (±5.5°F)
100 to 400°C (212 to 752°F): ±3%
Measurement Presets
No measurement, center spot, hot spot, cold spot
Object Temperature Range
-10 to 400°C (14 to 752°F)
Spot Meter
1 in live mode
Power
Battery operating time
>5 hours (full LCD brightness and worklight on)
Battery type
Rechargeable 3.7 V Li-ion battery, charged in camera or on separate charger
Shipping Information
Packaging
Videoscope display, MSX camera probe, two rechargeable batteries, battery charger, SD card, USB cable, wrist strap, hard case, printed documents
Storage Media
Memory Type
Removable SD card (16 GB) included
Saved image format
Radiometric JPEG
