600W Switching Mode DC Power Supply (230V)

Extech 382276

Go to Product Support
product image

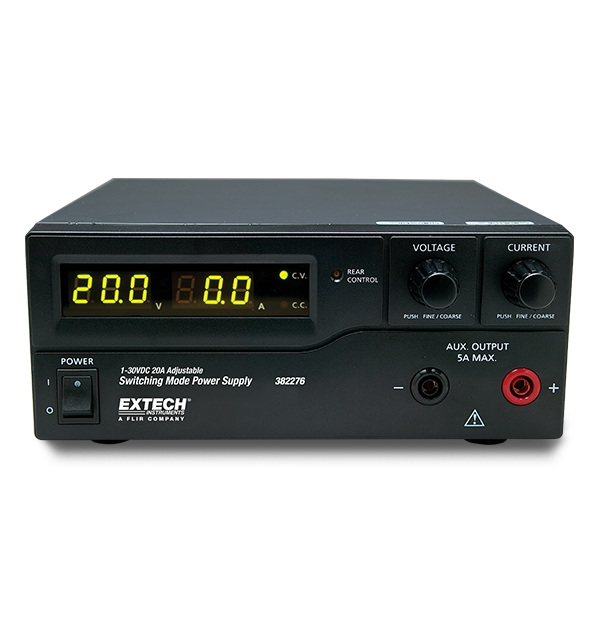

382276 is a Switching Mode DC Power Supply has an adjustable output of 0 to 30V/ 20A with two user-defined presets and one 13.8V/20A factory preset. Power supply features dual LED displays, high RFI immunity, excellent EMI, and a Thermostatic Control Fan. Additional features include over-voltage, over-temperature, and short circuit protection. Operates at 220V, 50/60Hz and comes complete with AC power cord.

Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

General Specifications
Line Current Regulation
50mA min
Line Voltage Regulation
Load Current Regulation
100mA min
Load Voltage Regulation
Output Current
1 to 20A
Output Current Basic Accuracy
±(0.5% of reading + 2 digits)
Output Current Max Resolution
Output Voltage
1 to 30V
Output Voltage Basic Accuracy
±(0.5% of reading + 2 digits)
Output Voltage Max Resolution
Ripple and Noise
Additional Details
7.9 × 3.5 × 8.5" (200 × 90 × 215mm)
230V, 50Hz/60Hz
2 years
5.7lbs (2.6kg)
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
