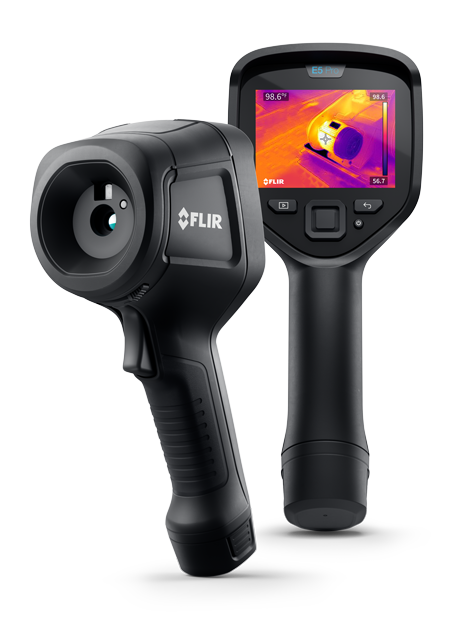

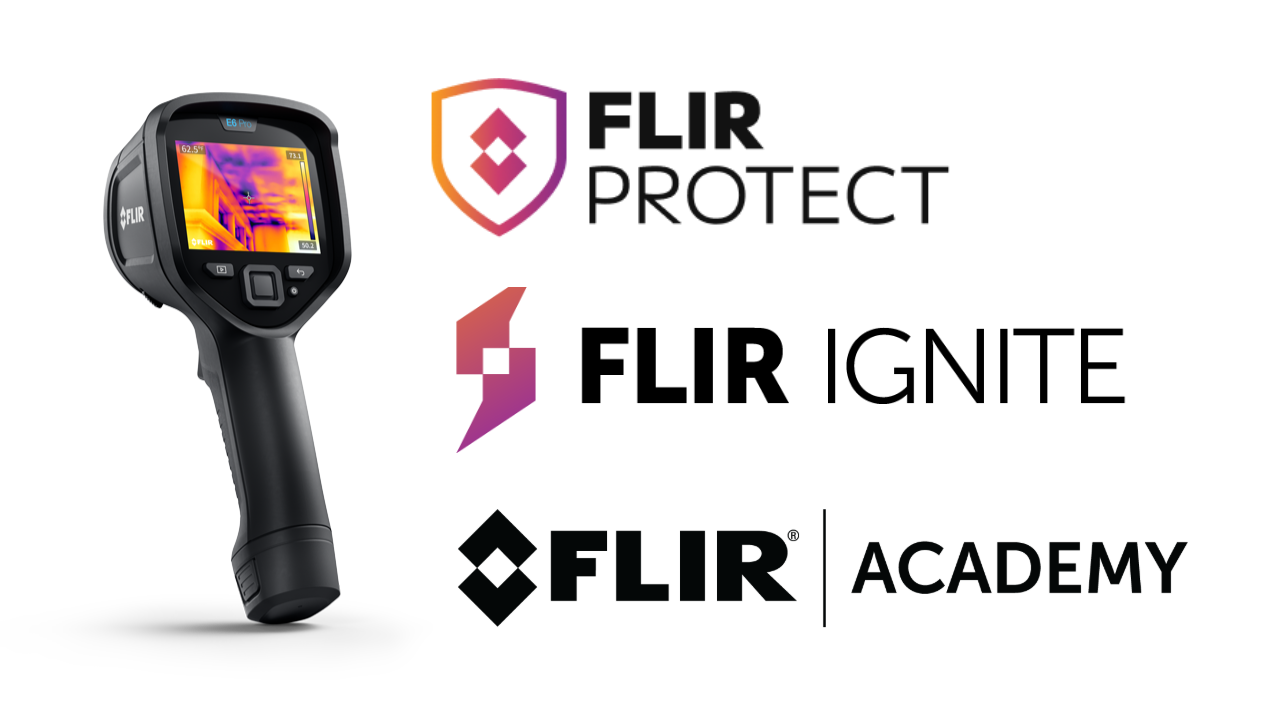

FLIR Ex-Series™
Infrared Cameras with MSX®
Now you can afford the ultimate inspection tool. Gain the competitive advantage and take care of more customers. Blow them away with dramatic MSX thermal images that clearly reveal problems from sources of energy loss, moisture intrusion and structural issues to overheating electrical and mechanical equipment.
Wi-Fi Connectivity
No matter where you are, share images and send reports instantly from your smartphone or tablet via the FLIR Tools Mobile app, and make critical decisions faster!

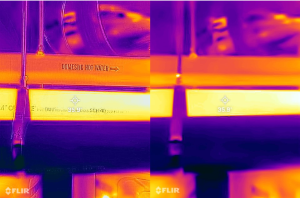

MSX®Thermal Image Enhancement
MSX adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one thermal picture with numbers, labels, and other structural features intact so you'll instantly recognize where the heat issue is.
The Power of One Button
A focus-free lens and simple button navigation to on-screen settings, imaging modes, measurement tools, and saved JPEGS make all four of these cameras amazingly easy to operate, even with just the press of a single gloved thumb.
FLIR Ex-Series Features
Rechargeable Batteries
Quick-release battery is easy to remove, change, and recharge
Fast Download
Rapid image downloading via USB for sharing and documentation
Quick Reports
FLIR Tools software to analyze images and create convincing reports
Measurement Accuracy
Variable emissivity and reflected temperature parameters for reliable results
Fast Temperatures
Area box with auto hot and cold spot hunts down extremes in no time
Warranty
2 years coverage on the camera, 5 on batteries, and 10 on the detector
FLIR Ex-Series Specifications
| Model Number | FLIR E4 | FLIR E5 | FLIR E6 | FLIR E8 |
|---|---|---|---|---|
| Imaging and Optical Data | ||||
| IR Resolution | 80 × 60 | 120 × 90 | 160 × 120 | 320 × 240 |
| MSX Resolution | 320 × 240 | |||
| Thermal Sensitivity | <0.15°C | <0.10°C | <0.06°C | |
| Field of View | 45° × 34° | |||
| Focus | Focus Free | |||
| Detector | Uncooled Microbolometer | |||
| Screen | 3.0 in. 320 × 240 color LCD | |||
| Frame Rate | 9 Hz | |||
| Analysis | ||||
| Image Modes | IR image, visual image, MSX, thumbnail gallery | IR image, visual image, MSX, picture-in-picture, thumbnail gallery | ||
| Show more... | ||||
| Multi Spectral Dynamic Imaging (MSX) | IR image with enhanced detail presentation | |||
| Picture-in-Picture | N/A | IR area on visual image | ||
| Temperature Range | –4° F to 482°F (–20° to 250°C) | |||
| Accuracy | ±2% or 2°C | |||
| Measurement Modes | Spot (center) mode | 2 modes: 1 Spot (center); 1 Area Box (Min/Max) | 3 modes: 1 Spot (center); 1 Area Box (Min/Max); Isotherm (above/below) | |
| Alarm | N/A | N/A | Blue below or red above set temperature | |
| Emissivity Correction | Variable from 0.1 to 1.0 | |||
| Set-Up | ||||
|---|---|---|---|---|
| Color Palettes | Iron, Rainbow, and Gray | |||
| Set-up Commands | Local adaptation of units, language, date and time formats | |||
| Image Storage | ||||
| Storage Capacity | Internal memory store at least 500 sets of images | |||
| Storage Mode | Simultaneous storage of images in IR, visual and MSX | |||
| File Formats | Standard JPEG, 14-bit measurement data included | |||
| Other | ||||
| Battery Type / Op Time | ~4 hours | |||
| Dimensions / Weight | / 1.27 lbs (0.575 kg) | |||

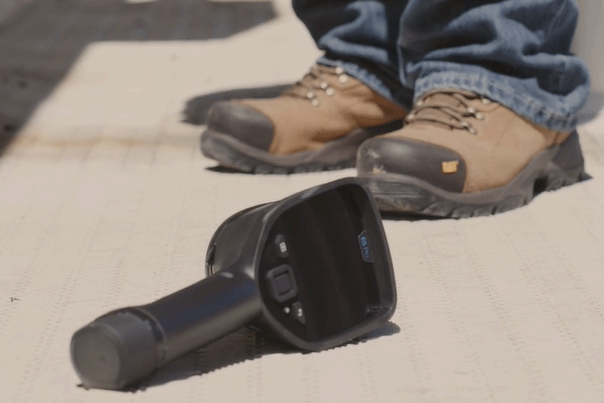

| Drop | 2 meter / 6.6 ft | |||
| Warranty | FLIR Warranty: Learn More | |||
*Disclaimer: Specifications are subject to change without notice. Availability of camera models and accessories subject to regional market considerations. Prices listed are US only, please consult your specific country for current pricing.
Available Models
FLIR E4 with WiFi
Infrared Camera with MSX with 80×60 IR Resolution
$1,235.00
FLIR E5 with WiFi
Infrared Camera with MSX with 120×90 IR Resolution
$1,560.00
FLIR E6 with WiFi
Infrared Camera with MSX with 160×120 IR Resolution
$2,600.00
FLIR E8 with WiFi
Infrared Camera with MSX with 320×240 IR Resolution
$3,900.00
FLIR E4 (non WiFi)
Infrared Camera with MSX with 80×60 IR Resolution
$1,235.00
FLIR E5 (non WiFi)
Infrared Camera with MSX with 120×90 IR Resolution
$1,560.00
FLIR E6 (non WiFi)
Infrared Camera with MSX with 160×120 IR Resolution
$2,600.00
FLIR E8 (non WiFi)
Infrared Camera with MSX with 320×240 IR Resolution
$3,900.00
What's in the Box
- Thermal Camera
- Hard Transport Case
- USB Cable
- Power Supply/Charger
- Rechargeable Battery
- Purchase optional accessories and replacement parts

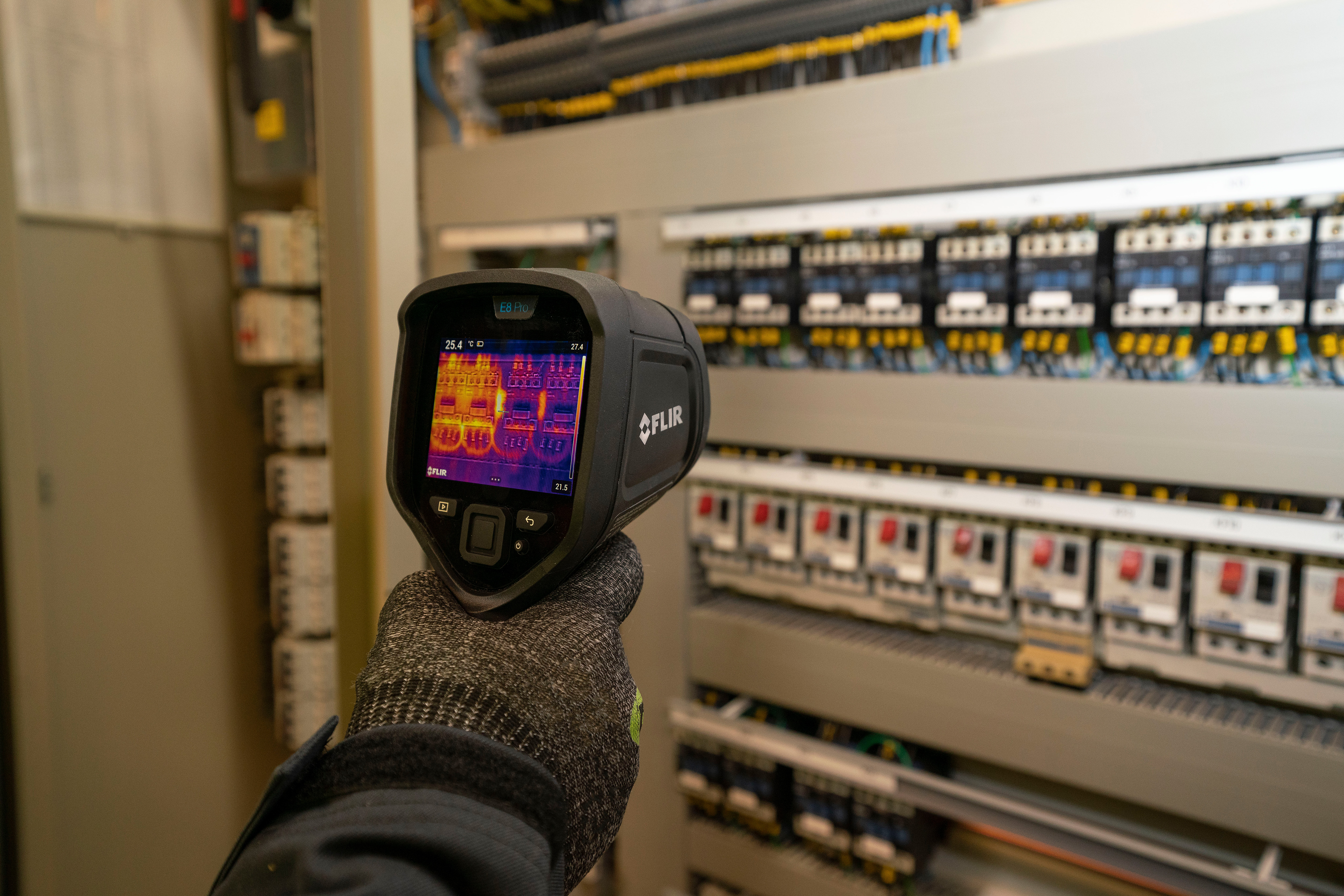

Electrical

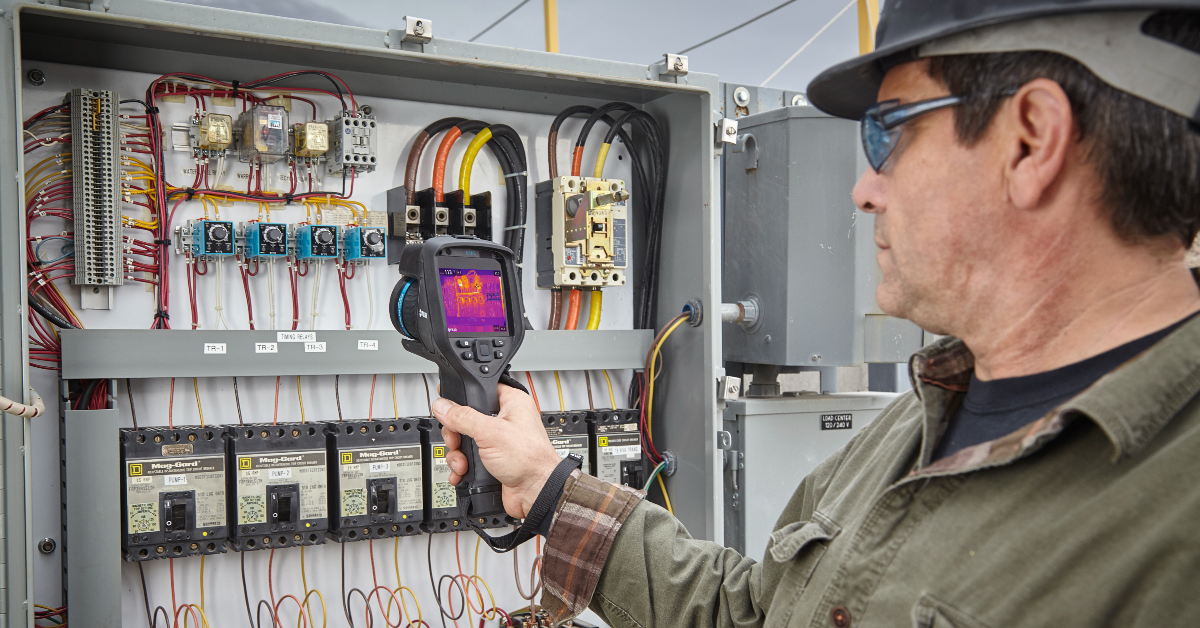

Ex-Series offer a more professional thermal imaging solution for troubleshooting abnormal high temperatures on breakers, fuses, and connections.
Building
With Ex-Series’ extra resolution, functionality, and sensitivity, you’ll see the invisible better and spot problems faster. Locate structural issues, energy waste, moisture intrusion, and even nesting pests.

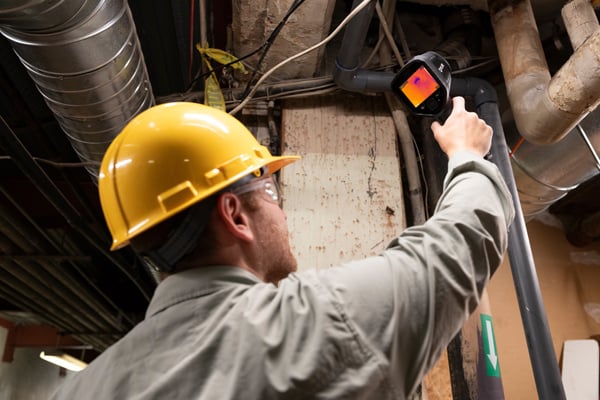

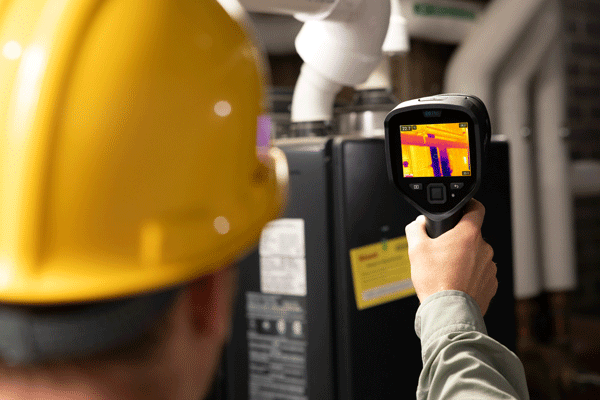

HVAC
With an Ex-Series camera in your toolbox, you’ll be able to track down heating and cooling system duct disconnects, mechanical wear, and refrigerant issues quickly.
